Sysolution M60 Cloud LED Display Controller, Wi-Fi
$ 188.25
The Sysolution M60 combines Wi-Fi and cloud program management with two Gigabit LED outputs and a documented 1920 × 1080 load. It includes 8 GB flash, USB camera support and expansion through compatible multi-function sensor cards.
10000 in stock
M60 wireless management for LED signage
The Sysolution M60 supports full-color LED signage managed locally through its built-in web server or remotely through AIPS. Wi-Fi AP and Station modes offer wireless configuration and network access, while the PC/LAN port provides a wired connection. The original listing also describes redundant backup and support for shaped-screen configurations.
Choose the controller with the receiving-card system and module scan arrangement in mind. USB cameras and environmental functions require the appropriate connected devices; R30E and R50 expansion cards are documented for sensor and switching functions. The dimensions below follow the PDF drawing marked in millimeters, rather than the inconsistent unit label in its parameter table.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Sysolution M60 cloud LED display controller |
| LED outputs / load | 2 Gigabit LED outputs; documented 1920 × 1080 load |
| CPU | Dual-core ARM Cortex-A7, 1.2 GHz, as listed in the original product table |
| GPU | ARM Mali-400 MP2 |
| Memory / flash | 1 GB memory / 8 GB onboard flash |
| Wireless connection | Wi-Fi with AP and Station modes |
| Wired network | PC/LAN connection |
| Video processing | Hardware decoding with 1080p video support |
| USB interfaces | USB-OTG and USB-HOST; USB camera supported |
| Audio | Audio output interface |
| Cloud / local control | AIPS 2.0 and built-in web server; PC, iOS, Android and other cross-platform devices |
| Management functions | Media, users, programs, log statistics, monitoring alarms and live-streaming support listed |
| Sensor expansion | R30E or R50 multi-function card support; temperature, humidity, brightness and infrared functions |
| LED module features | Full-color static through 32-scan modes; MBI, ICN, SUM and MY driver families listed |
| Gray levels | 65,536 |
| Receiving-card / software | D90 in the original listing; Easyboard and LedSyncSet 2.0 |
| Power connection | 5 VDC, 3 A supply connection; operating-voltage range 4.5–5.5 V |
| Maximum operating current / consumption | 2 A / 10 W |
| Operating temperature / humidity | −25 to +70 °C / 10–90% RH |
| Storage temperature | −40 to +70 °C; recommended +5 to +35 °C |
| Dimensions | 145.9 × 129 × 29.7 mm, following the dimension drawing |
| Weight | 400 g |

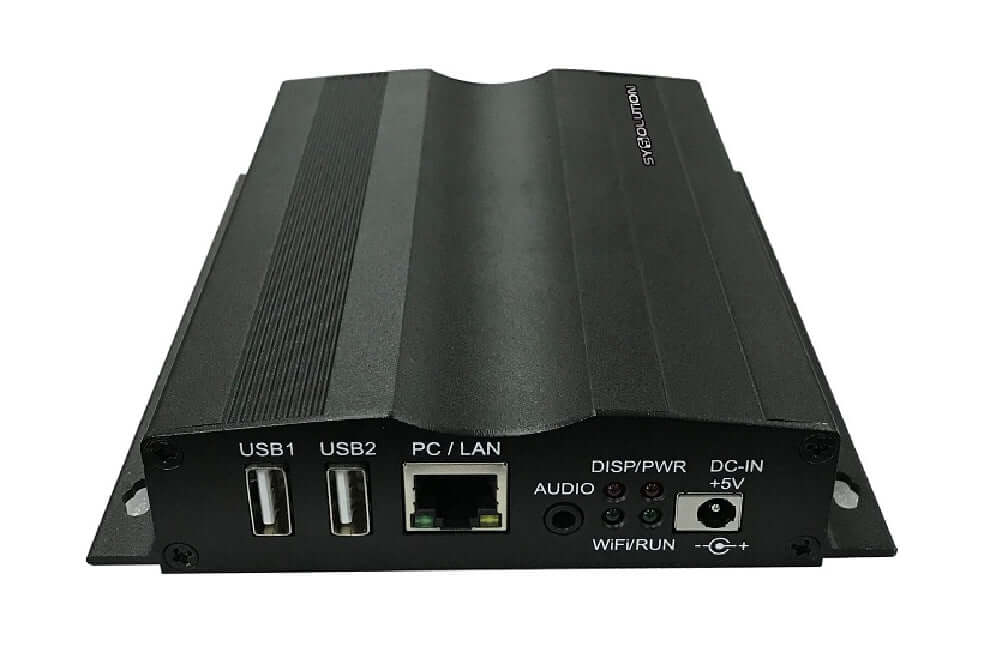

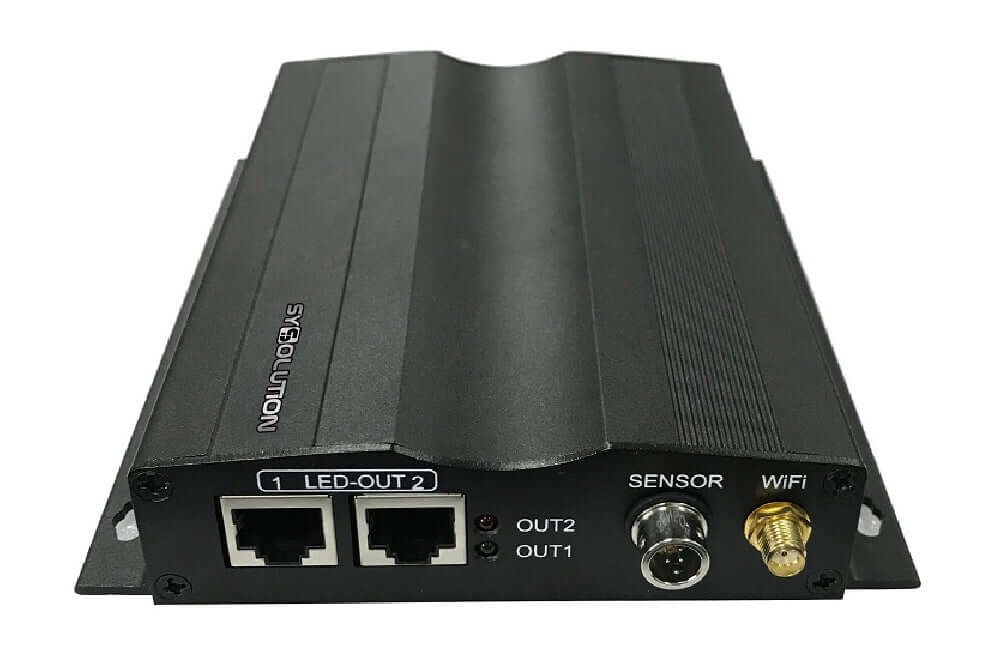

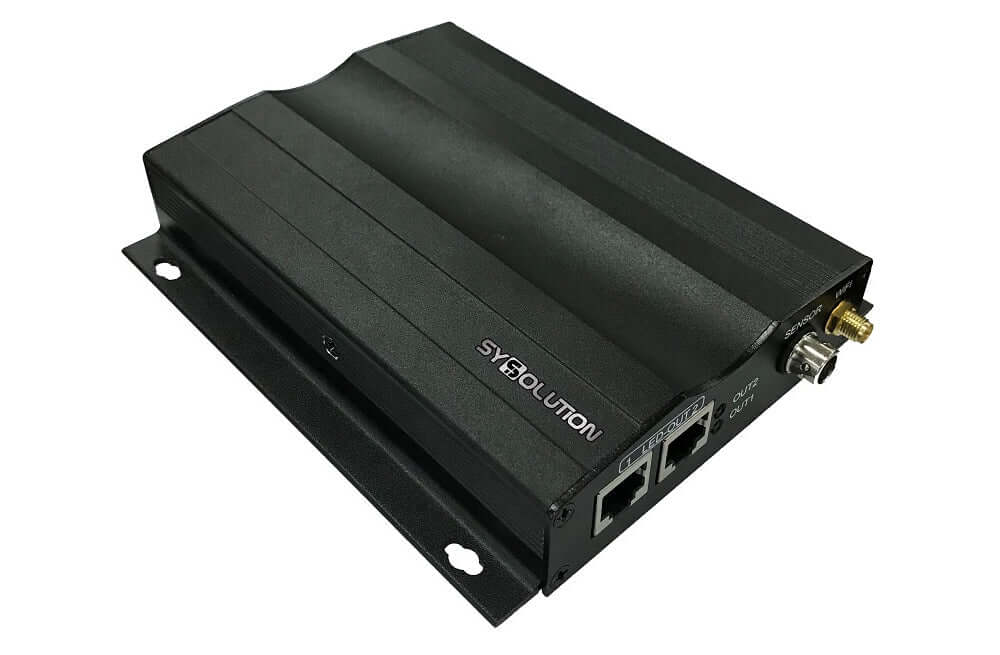

Product images and specification download
Download specification:
Sysolution M60 Multimedia Cloud Internet LED Controller Parameter
Frequently asked questions
What screen resolution is listed for the M60?
Both the original product table and linked specification list a 1920 × 1080 load through the two LED outputs. Confirm the receiving-card layout and module configuration for the intended screen.
Can I configure and update the M60 over Wi-Fi?
Yes. The onboard Wi-Fi supports AP and Station modes. The built-in web server supports local program workflows from computers and mobile devices, while AIPS provides cloud management.
Can the M60 use a camera and environmental sensors?
The specification supports a USB camera and R30E or R50 multi-function cards. Those expansion cards support functions such as temperature, humidity, brightness and infrared sensing. Confirm the required card and probes for the installation.
What power supply should I use for the M60?
The interface description specifies a 5 VDC, 3 A power connection. The technical table gives a 4.5–5.5 V operating range, 2 A maximum operating current and 10 W maximum consumption; the supply rating and the controller’s operating current are different values.
What are the M60 dimensions and receiving-card requirements?
The dimension drawing shows 145.9 × 129 × 29.7 mm. The original product table names D90 receiving cards, and the manual describes parameter storage with ninth-generation receiving cards. Check the exact receiving-card model before replacement.
