Rong Electric MDK200PC5 5V 40A LED Switching Power Supply
$ 20.50
The Rong Electric MDK200PC5 supplies 5 V DC to an LED display, with up to 40 A of output current. For installations above 200 V AC, check the unit’s nameplate: the listing and the manufacturer’s PDF give different upper input limits.
10000 in stock
The MDK200PC5 is a 200 W switching power supply for LED displays. For a replacement, match the full model number and check both sides of the supply: the AC rating must cover the site voltage, and the display load must be within the DC output rating.
MDK200PC5 electrical specifications
| Parameter | Specification |
|---|---|
| Output power | 200 W |
| Output voltage | +5.0 V DC |
| Output current | 0–40 A |
| Rated AC input | 100–200 V AC on the product listing; 100–240 V AC in the MDK200PC5 specification |
| Regulation accuracy | ±2% |
| Ripple and noise | ≤200 mV peak-to-peak |

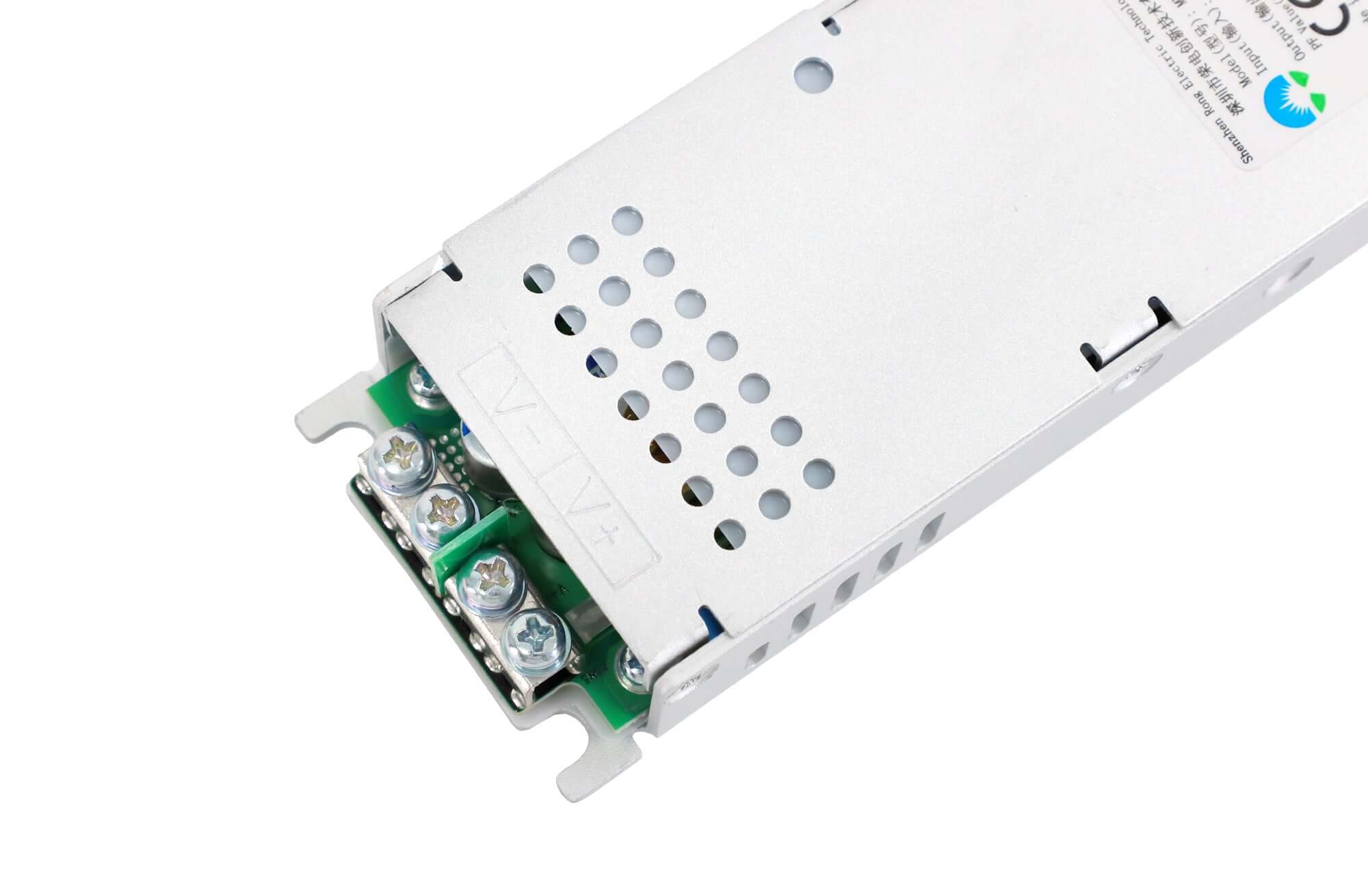

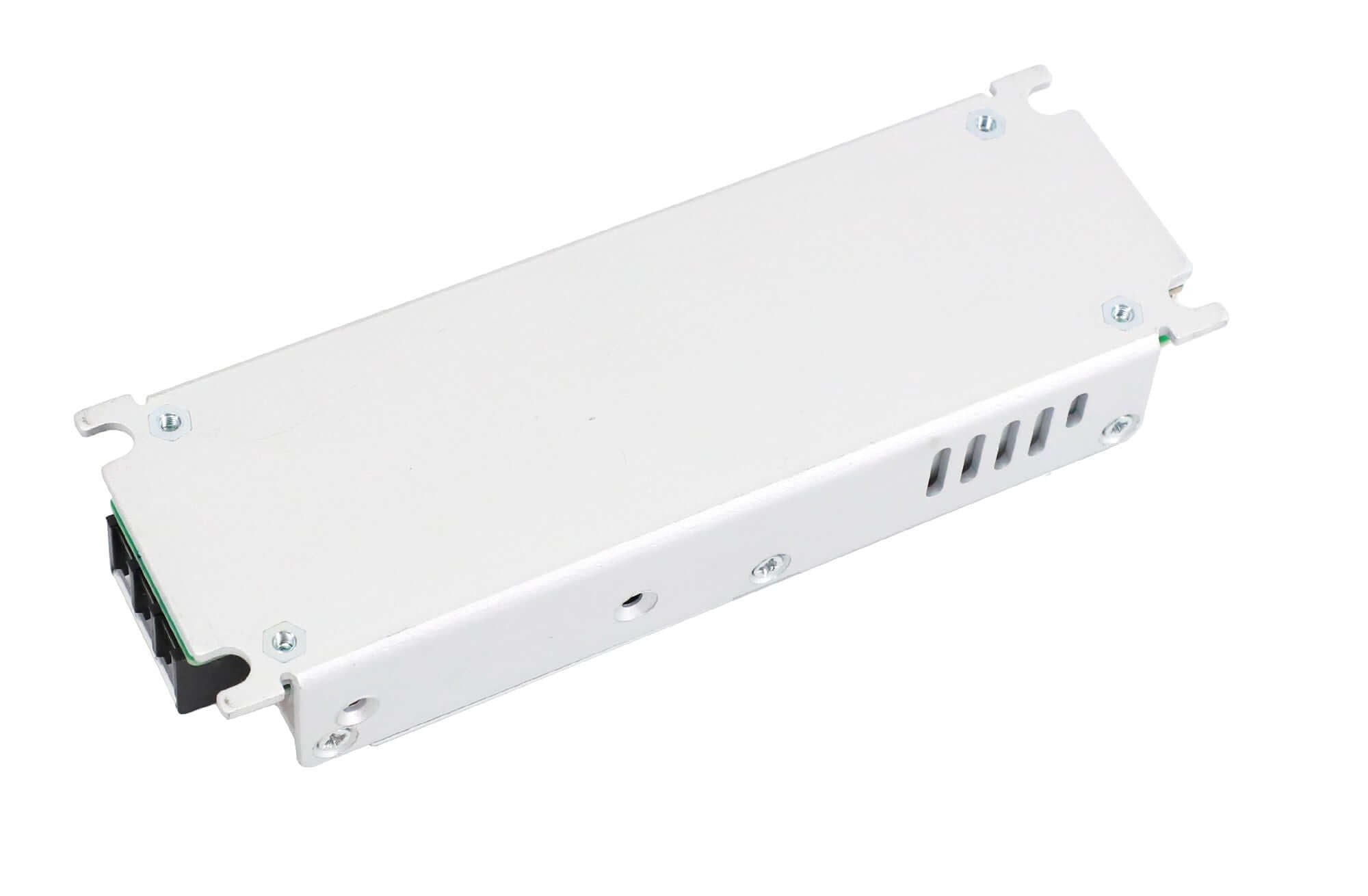

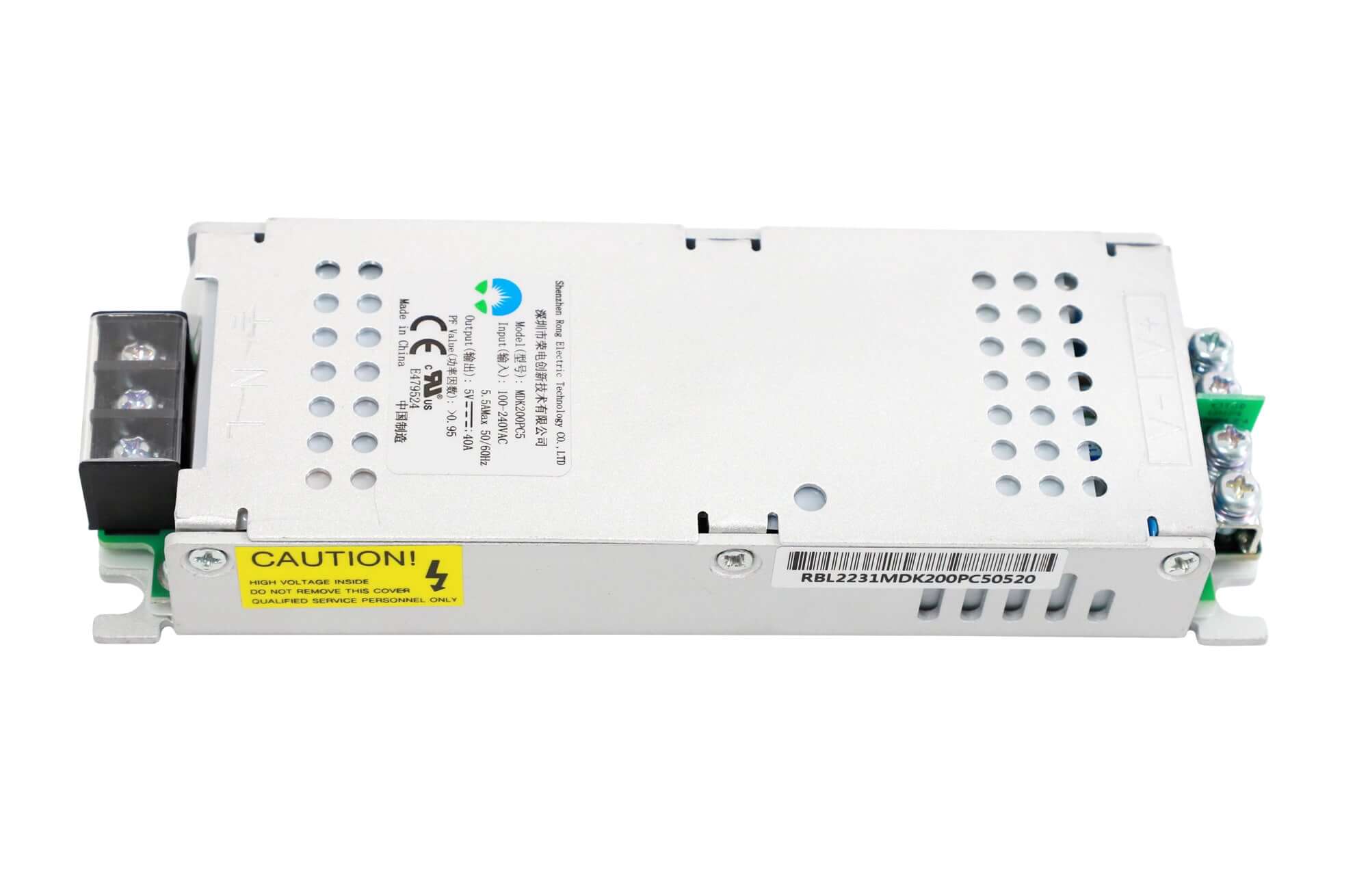

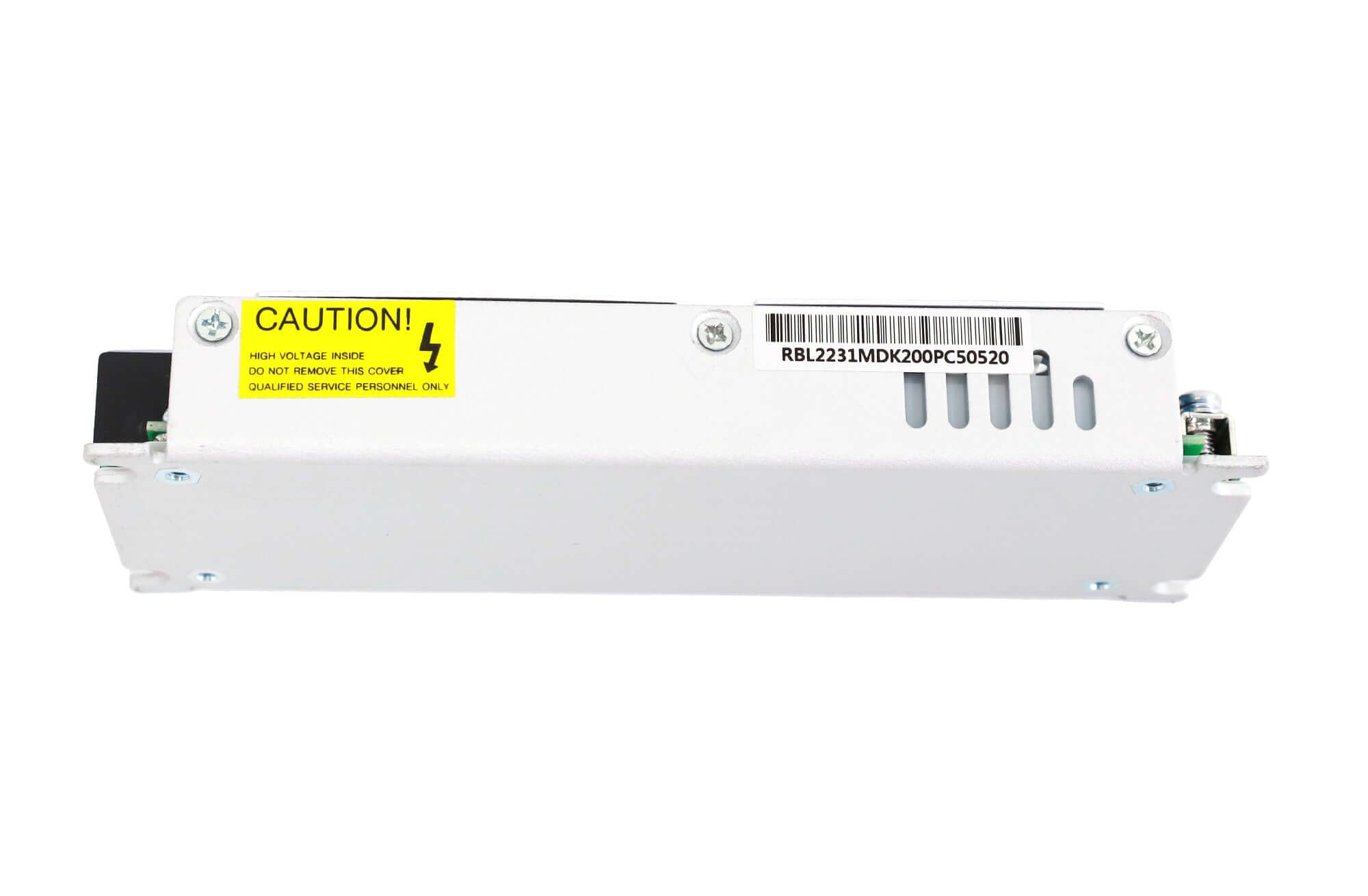

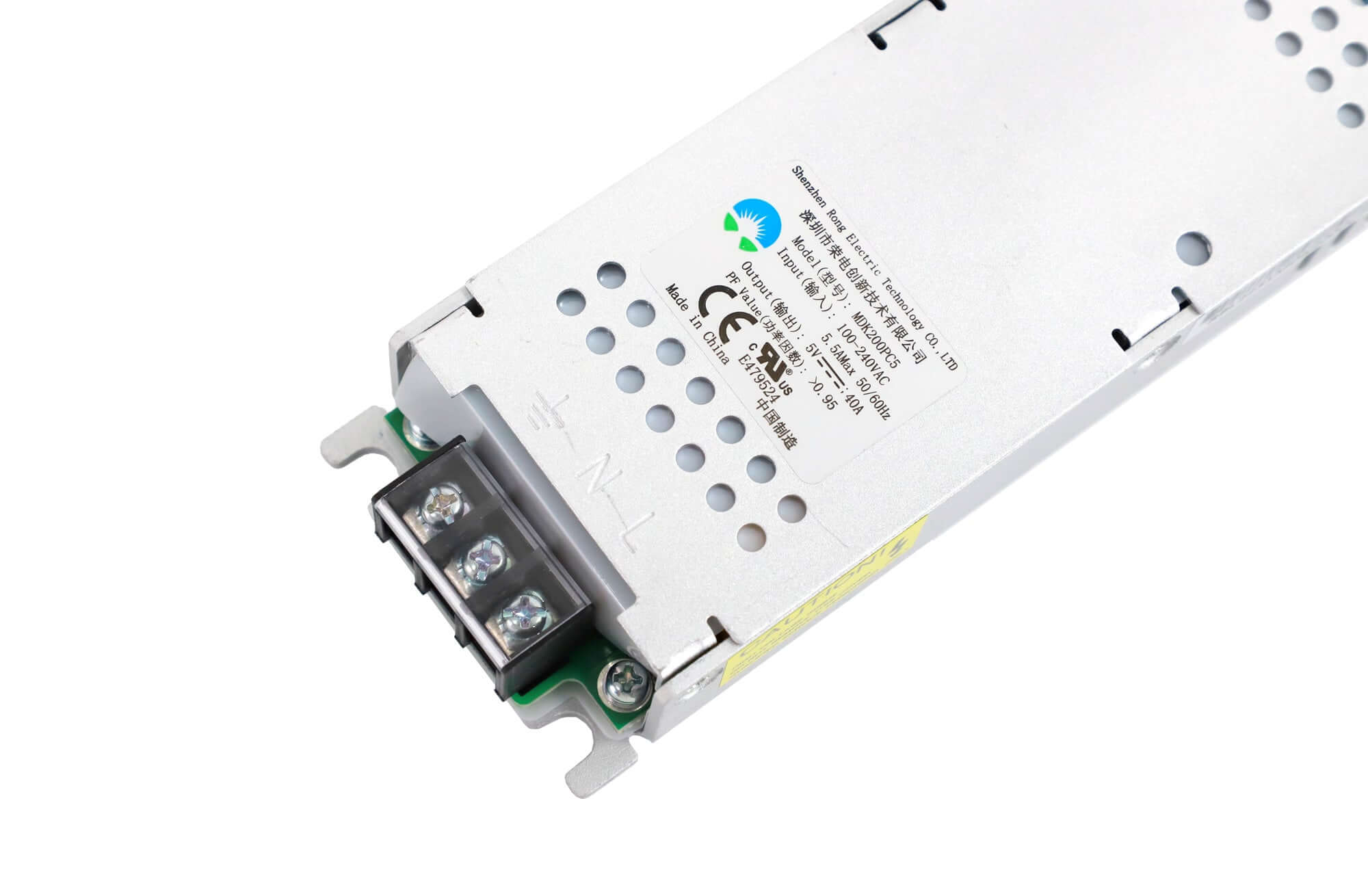

Product photos and datasheet
Download the Rong Electric MDK200PC5 specification (PDF). The main electrical ratings are on page 4 of the PDF.
Frequently asked questions
Can I use the MDK200PC5 on a 230 V AC supply?
The manufacturer’s electrical table lists 100–240 V AC, while the product listing gives 100–200 V AC. Check the rating on the specific unit before using it at 230 V AC.
Is 40 A the input current or the output current?
It is the maximum DC output current. The specified output range is 0–40 A at 5 V DC.
What ripple limit does Rong Electric specify?
The main electrical table lists ripple and noise together at no more than 200 mV peak-to-peak. Voltage regulation is a separate specification of ±2%.
What happens if the output is shorted?
Rong Electric lists output short-circuit protection and current limiting for this model. The specification also identifies input undervoltage protection.
| Weight | 0.38 kg |
|---|
