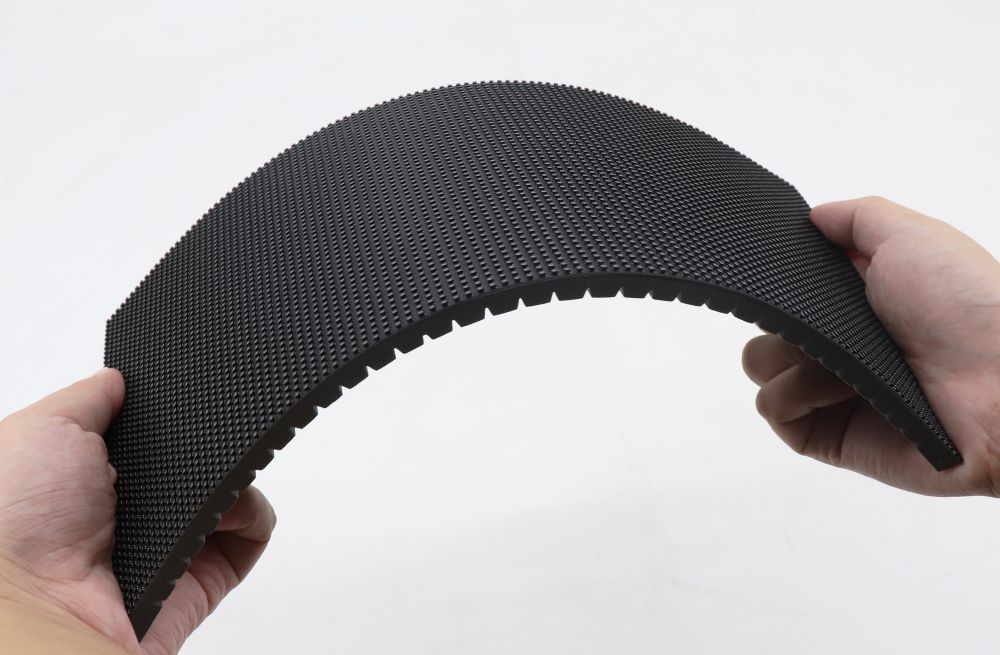

P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module

P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module,can be used for curved iron cabinets
$27.00
More Information
Weight(kg) 0.75 kgs
Manufacturer LED-MALL
Availability: In stock
SKU
P3.076-i26S-2020-320x160SF

 Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don't offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.





P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module Parameter:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD2020 70-100mcd 120°/120° 620-625nm 25℃,20mA
Green 120-200mcd 120°/120° 515-530nm 25℃,10mA
Blue 30-40mcd 120°/120° 465-475nm 25℃,5mA
Module Parameter
Pixel Pitch 3.076mm
Pixel Configuration SMD2020
Density 105,689 pixels/
Module Resolution 104pixel(L) * 52pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 8.5mm(D)
Driving Mode Constant current, 1/26 duty
Electricity Parameter
Optical Ratings
Brightness ≥800 cd/
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥3m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Max. Power Consumption 20W
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100M (Ethernet cable);
20KM (Optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20+60 ºC
Storage Temperature -30+70 ºC
Working Humidity 10%90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP31
Out-of-Control Pixel Rate ≤0.01%



More Pictures of P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module

P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module

P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module

P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module

P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module



More pictures of P3.076 internal 320x160mm LED magnet screen flexible flexible LED unit for the installation of led screen and application:

P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module

P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module

P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module



Download Specification

P3.076 Indoor 320x160mm LED Screen Magnet Soft Flexible LED Module
