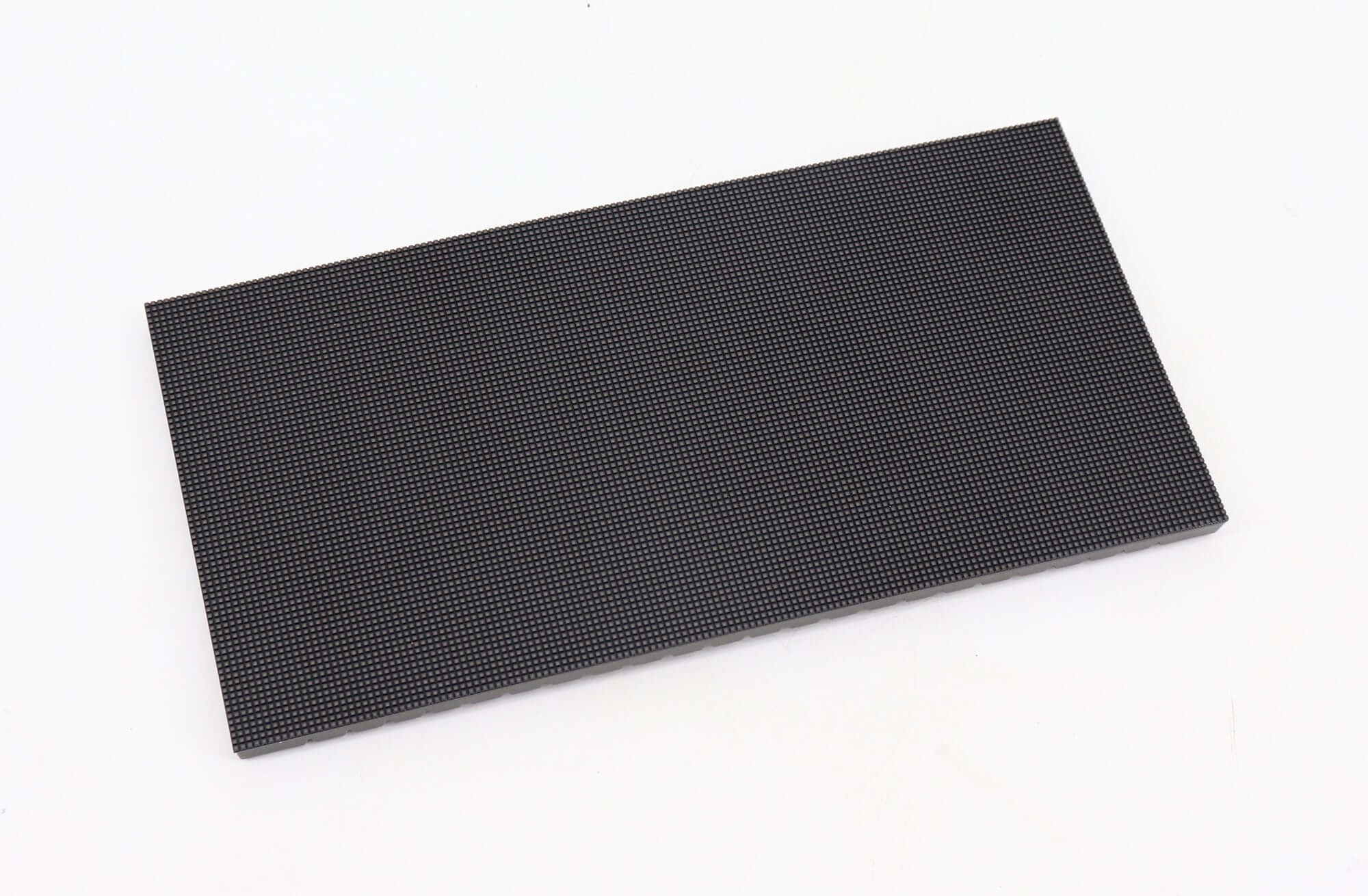

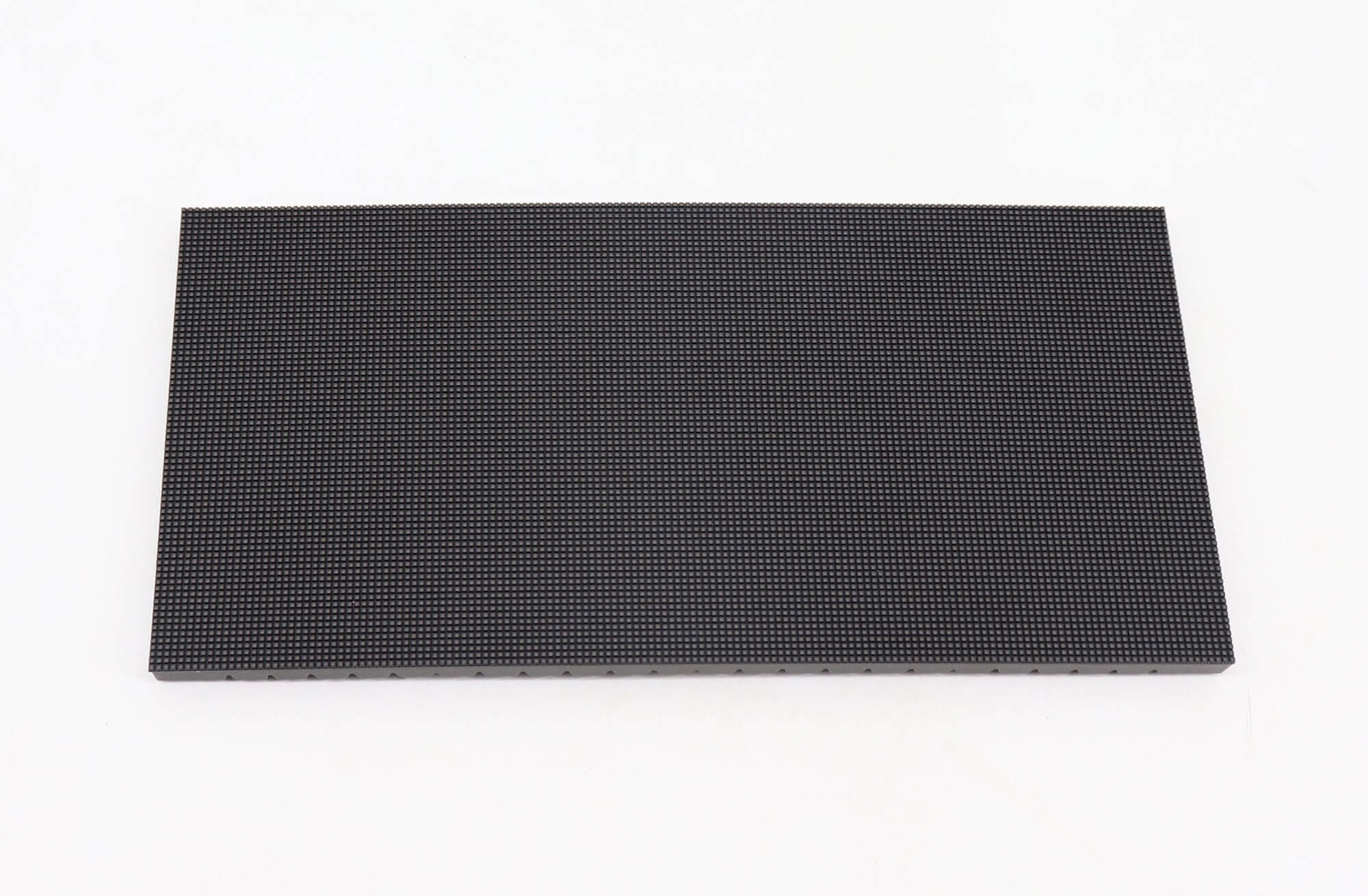

P1.579 Indoor GOB Flexible LED Module, 240 × 120 mm, SMD1212
$ 30.20
Each 240 × 120 mm module has 152 × 76 pixels on a 1.579 mm pitch. It uses SMD1212 LEDs.
10000 in stock

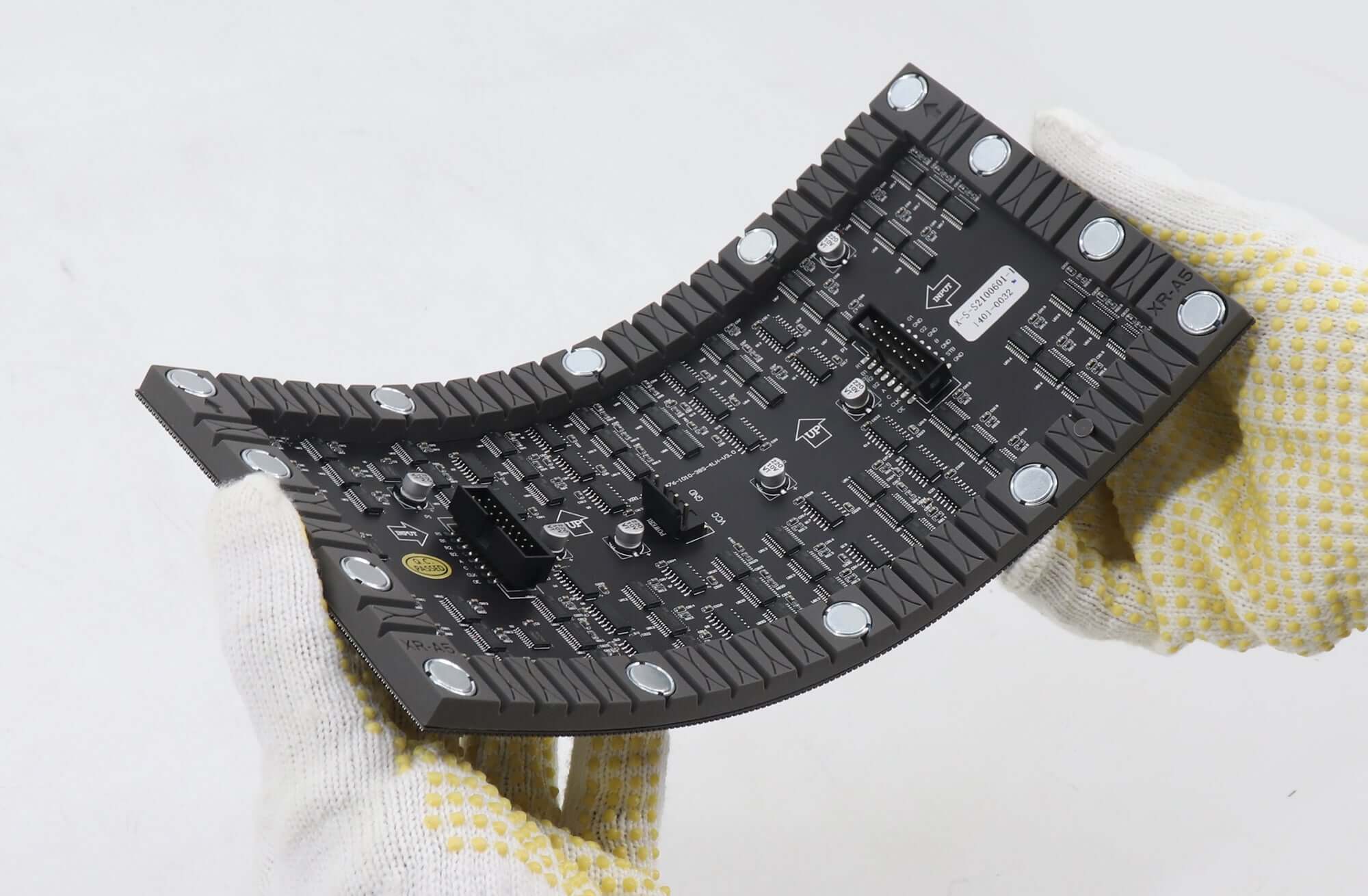

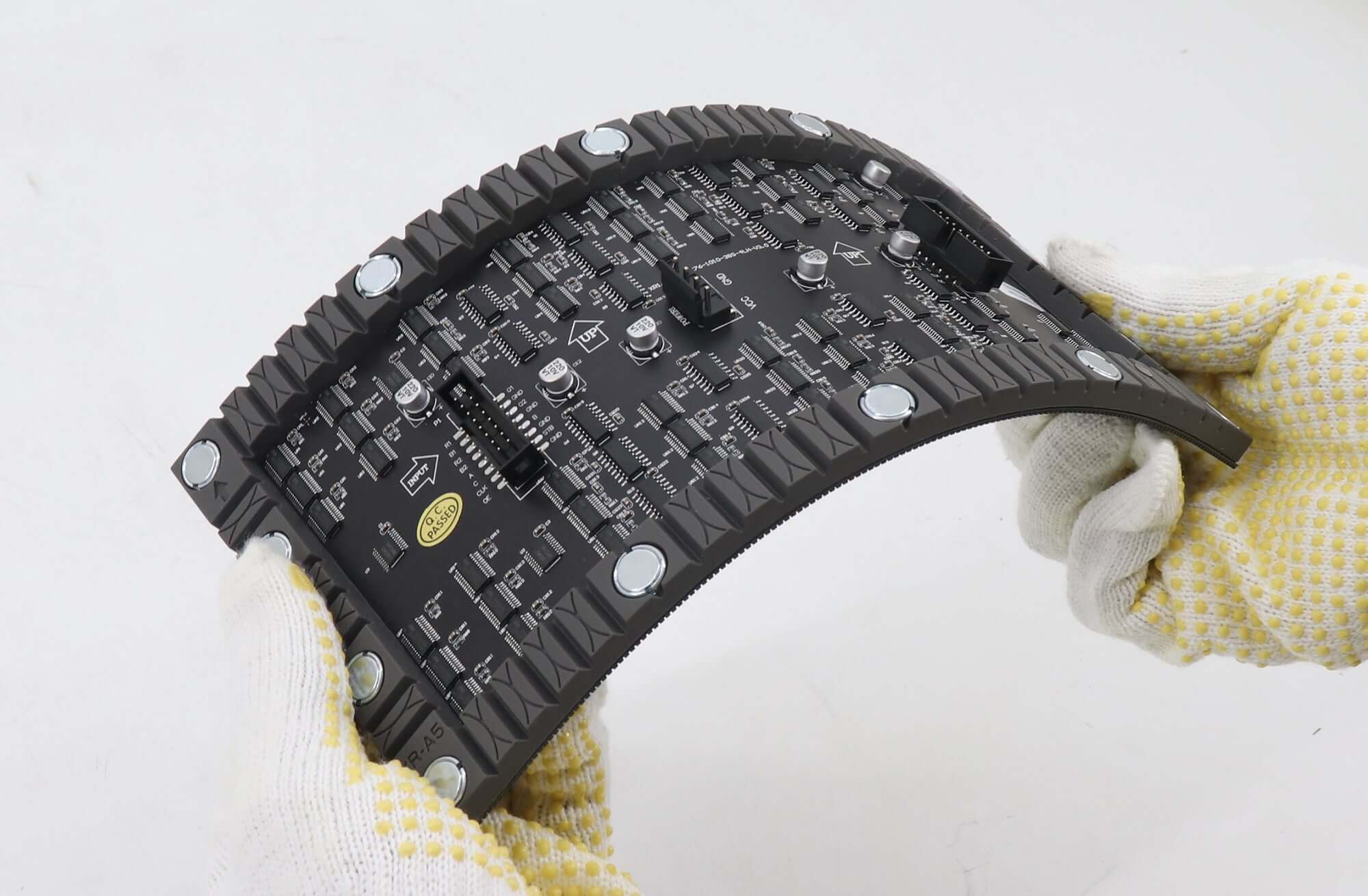

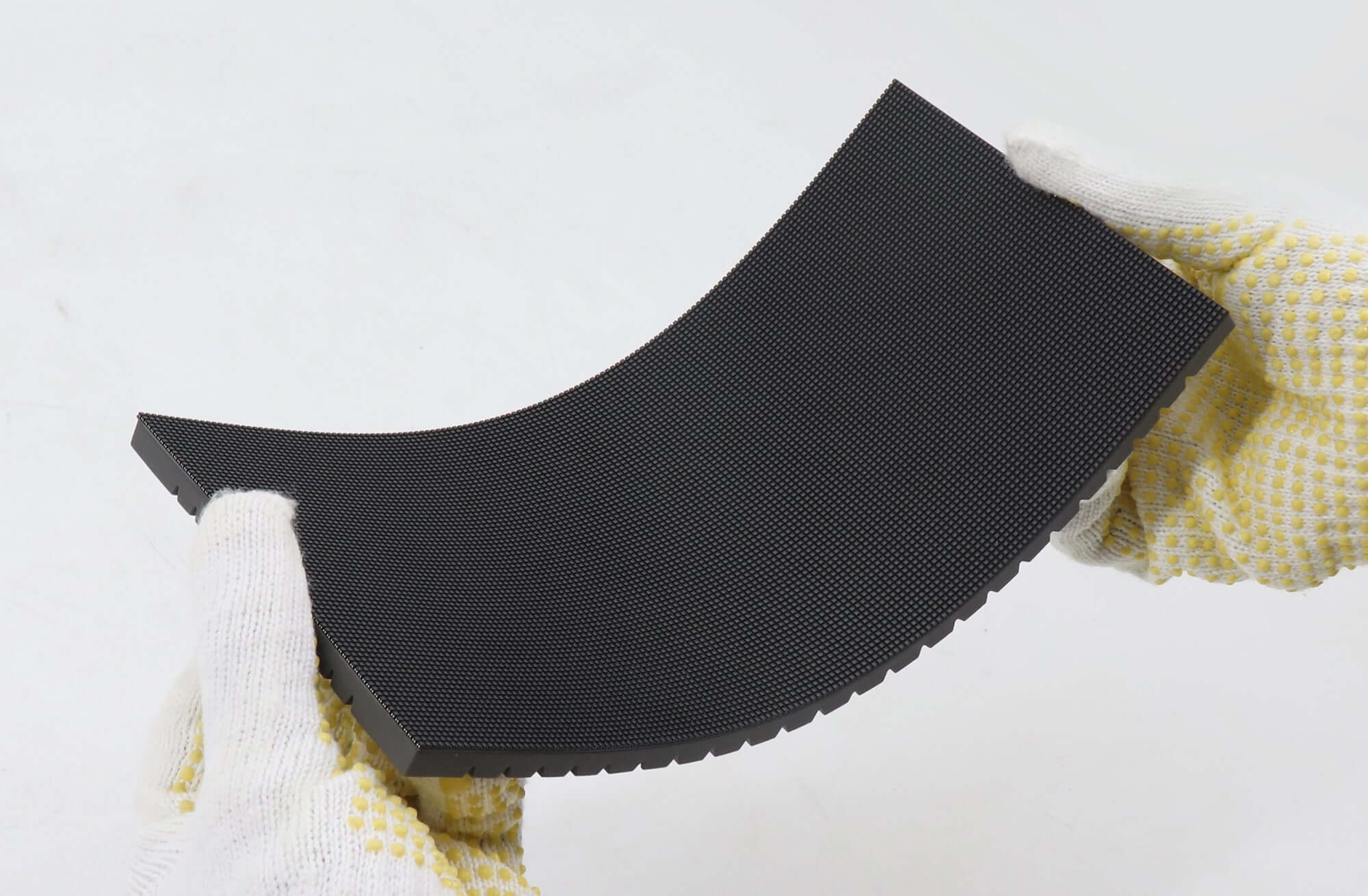

The flexible board is intended for curved display surfaces. Check the intended curve and mounting arrangement against the module documentation. The listed drive mode for this board is Constant current, 1/38 duty.
Technical specifications
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Red | SMD1212 | 10-22mcd | 120° | 620-625nm | 25℃,5mA | |
| Green | 30-80mcd | 120° | 515-535nm | 25℃,3mA | ||
| Blue | 4.5-9.9mcd | 120° | 460-475nm | 25℃,2mA | ||
| Module Parameter | ||||||
| Pixel Pitch | 1.579mm | |||||
| Pixel Configuration | SMD1212 | |||||
| Density | 401,084 pixels/㎡ | |||||
| Module Resolution | 152pixel(L) * 76pixel(H) | |||||
| Module Dimension | 240mm(L) *120mm(H) * 8.5mm(D) | |||||
| Driving Mode | Constant current, 1/38 duty | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥800 cd/㎡ | |||||
| Viewing Angle | 140°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥1.6m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 15 W | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥3,840Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable); | |||||
| 20KM(optical fiber cable) | ||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
Package and ordering information
Each module comes with an inter-module signal cable and a power cable for connection to the supply. Order all modules for one screen together so they come from the same production batch; different batches can vary in color and brightness. These modules are not supplied or supported as spare parts for existing older displays. Destination duties and customs clearance are the buyer’s responsibility.
Product documentation and photos
Download the module specification (PDF)
Frequently asked questions
Which version of the flexible module is listed here?
This is the GOB version with a 1.579 mm pitch and 152 × 76 pixels. Check all three details when comparing it with other flexible modules.
How much power does one 240 × 120 mm board use?
The maximum power consumption is listed as 15 W per module. Use the figure for this board when planning the cabinet supply.
How do I check the fit for a curved display?
Use the 240 × 120 mm outline to check mounting space. Confirm that the planned bend and supports suit this module before you order the full screen.
What is the pixel resolution of one P1.579 module in this size?
The 240 × 120 mm board contains 152 × 76 pixels. Use this matrix when calculating the resolution of a multi-module screen.
| Weight | 0.5 kg |
|---|
