Novastar Taurus Series T6 Large Screen Multimedia Player Control Card
Weight(kg) | 1.00 kgs |
---|---|
Manufacturer | Novastar |
Classification of Taurus` application cases is shown in Table:
Table1-1 Application
Classification |
Description |
Market type |
•Advertising media: To be used for advertising and information promotion including bar screen and advertising machine, |
Networking mode |
•Independent screen: Use a PC or the client software of a mobile phone to enable single-point connection and management of a screen. |
Connection type |
•Wired connection: A PC connects to Taurus through the Ethernet cable or LAN. |
2.1. Synchronous Display
The T6 support switching on/off unction of synchronous display.
When synchronous display is enabled, the same content can be played on different displays synchronously if the time of different T6 units are synchronous with one another and the same program is being played.
2.2. Powerful Processing Capability
The T6 feature powerful hardware processing capability:
•Support for 1080P video hardware decoding
• Eight-core processor
• 2 GB operating memory and 8 GB internal storage space.
2.3. Omnidirectional Control Plan
Table 3.3 Control Plan
Connecting Mode |
Client Terminal |
Related Software |
Connecting via network line Connection via Wi-Fi |
PC |
ViPlex Express NovaLCT-Taurus |
Connection via LAN |
PC |
ViPlex Express NovaLCT-Taurus |
Connection via Wi-Fi |
Mobile phone and Pad |
ViPlex Handy |
Wi-Fi AP=Sta/wired/4G |
Mobile phone and PC |
ViPlex Handy ViPlex Express |
Wi-Fi AP=Sta/wired/5G |
Mobile phone and PC |
ViPlex Handy ViPlex Express |
Cluster control plan is a new internet control plan featuring following advantages:
• More efficient: Use the could service mode to process services through a uniform platform. For example, VNNOX is used to edit and publish program. And NovaiCare is used to centrally monitor display status.
• More reliable: Ensure the reliability based on active and standby disaster recovery mechanism and data backup mechanism of the server.
• More safe: Ensure the system safety through channel encryption, data fingerprint and permission management.
• Easier to use: VNNOX and NovaiCare can be accessed through Web. As long as there is internet, operation can be performed anytime and anywhere.
• More effective: This mode is more suitable for the commercial mode of advertising industry and digital signage industry, and makes information spreading more effective.
2.4 Synchronous and Asynchronous Dual-Mode
The T6 supports synchronous and asynchronous dual-mode, allowing more
Application cases and being user-friendly.
When Internal video source is applied, the T6 is in asynchronous mode, when
HDML-input video source is used, the T6 is in synchronous mode content can be
scaled and displayed to fit the screen size automatically in synchronous mode.
Users can manually and timely switch between synchronous and asynchronous
Modes, as well as set HDML priority
2.5. Dual Wi-Fi Mode:
The T6 have permanent Wi-Fi AP and support the Wi-Fi Sta mode, carrying advantages as shown below:
• Completely cover Wi-Fi connection scene, The T6 can be connected to through self-carried Wi-Fi AP or the extern al router,
• Completely cover client terminals. Mobile phone, Pad and PC can be used to log in T6 through wireless network.
• Require no wiring. Display management can be managed at any time, having improvements in efficiency.
T6`s Wi-Fi AP signal strength is related to the transmit distance and environment. Users can change the Wi-Fi antenna as required.
2.5.1 Wi-Fi AP Mode
Users connect the Wi-Fi AP of a T6 to directly access the T6 .The SSID is “AP + the last 8 digits of the SN”, for example, “AP10000033”, and the default password is “12345678”.
2.5.2 Wi-Fi Sta Mode
Configure an external router for a T6 and users can access the T6 by connecting the external router. If an external router is configured for multiple T6 units, a LAN can be created. Users can access any of the T6 via the LAN.
2.5.3 Wi-Fi AP +Sta Mode
In Wi-Fi AP + Sta connection mode, users can either directly access the T6 or access Internet through bridging connection. Upon the cluster solution, VNNOX and NovaiCare can realize remote program publishing and remote monitoring respectively through the Internet.
2.6. Redundant Backup
T6 support network redundant backup and Ethernet port redundant backup
• Network redundant backup: The T6 automatically selects internet connection mode among wired network, Wi-Fi Sta or 4Gg network according to the priority.
• Ethernet port redundant backup: The T6 enhances connection reliability through active and standby redundant mechanism for the Ethernet port used to connect with the receiving card
3.1 Appearance
Figure 3.1 Appearance of T6
Note: Product images provided in this file are for reference only, and the actual products shall prevail
1 |
Gigabit Ethernet port |
9 |
Ethernet port |
2 |
USB2.0 port 1 |
10 |
Backup for Ethernet port 1 |
3 |
USB2.0 port 2 |
11 |
Backup for Ethernet port 2 |
4 |
HDMI1.4 input |
12 |
Power input |
5 |
HDMI1.4 output |
13 |
SIM card eject button |
6 |
Audio output |
14 |
SIM card slot |
7 |
Factory reset button, hold down for 5 seconds to reset to factory defaults |
15 |
Dual-mode switching button (Synchronous/Asynchronous) |
8 |
Ethernet port |
16 |
4G module slot |
Table 3-1 Indicators of the T6
No |
Indicator Color |
Indicator Status |
Description |
1 |
Green |
Both the green and yellow indicators are turned on simultaneously. |
The product is connected to the Gigabit Ethernet cable and the connection status is normal. |
2 |
Yellow |
Always on |
The product is connected to the 100M Ethernet cable and the connection status is normal. |
3 |
Red |
Always on |
Power input is normal. |
4 |
Green |
Flashes once every 2 seconds. |
The system is operating normally. |
Flashes once every 0.5 second. |
System is sending data. |
||
Always on/off |
The system is operating abnormally. |
||
5 |
Green |
Always on |
The product is connected to the Internet and the connection status is normal. |
Flashes once every 2 seconds. |
The product is connected to VNNOX and the connection status is normal. |
||
6 |
Green |
Same as the signal light status of the sending card |
FPGA is operating normally. |
4.1. Related Configuration Software
Table 4-1Related configuration software
Software |
Description |
ViPlex Handy |
Mobile phone client software of the T6 includes android and iOS which are mainly used for screen management, editing, and program publishing. |
ViPlex Express |
PC client software of the T6 only includes windows which is mainly used for screen management, editing, and program publishing. |
NovaLCT-Taurus |
Display screen configuration software works in Windows only, and is used to adjust screens to the best display status. |
T6 Item |
Sub-Item |
Specifications |
Physical specifications |
Dimension(H*W*D) |
167.0mm*135.6mm*22.0mm |
Weight |
181.7g |
|
Input power supply |
DC |
|
Rated voltage |
5V |
|
Rated current |
3A |
|
Maximum power consumption |
18W |
|
Storage humidity |
0℃-50℃ |
|
Storage temperature |
0%RH-80%RH |
|
Operating temperature |
-40℃-80℃ |
|
Operating humidity |
0%RH-80%RH |
|
Operating memory |
2GB |
|
Internal storage space |
8GB |
|
Packing information |
Dimension(H*W*D) |
200MM*120MM*40MM |
List |
• One bare card of T6 led
• One column Wi-Fi
|
|
Characteristics |
• Support 1.3 Megapixel loading capacity, with maximum width of 4096 pixels and maximum height of 1080 pixel. • Support HDMI Loop.
• Support HDMI input mode.
• Support HDMI input full-screen self-adaptive display.
• Support manual and timing switching between synchronous and asynchronous modes.
automatic and timing smart brightness adjustment. |

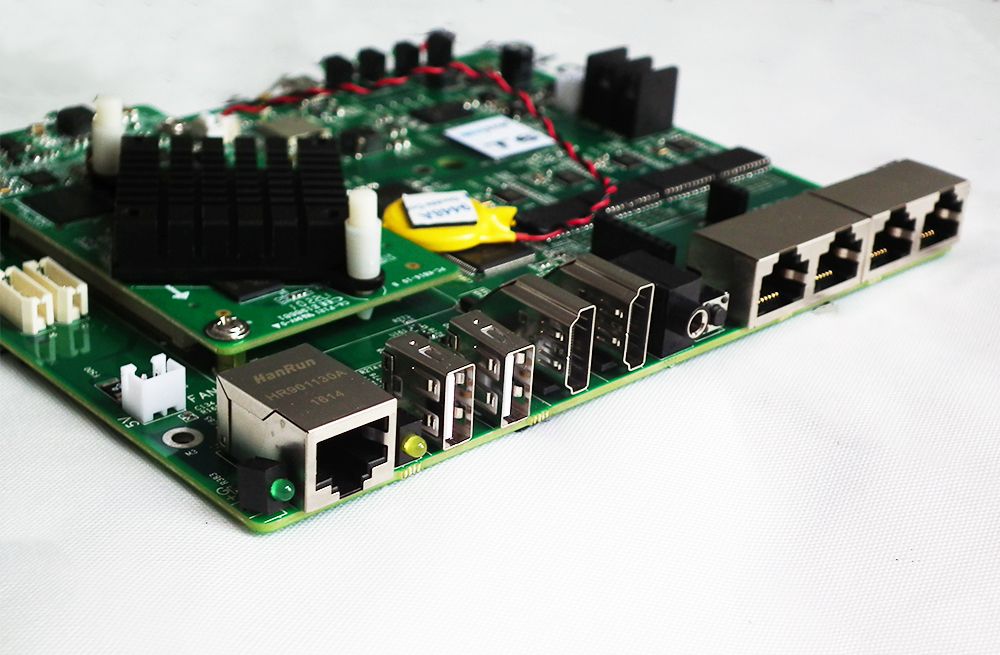

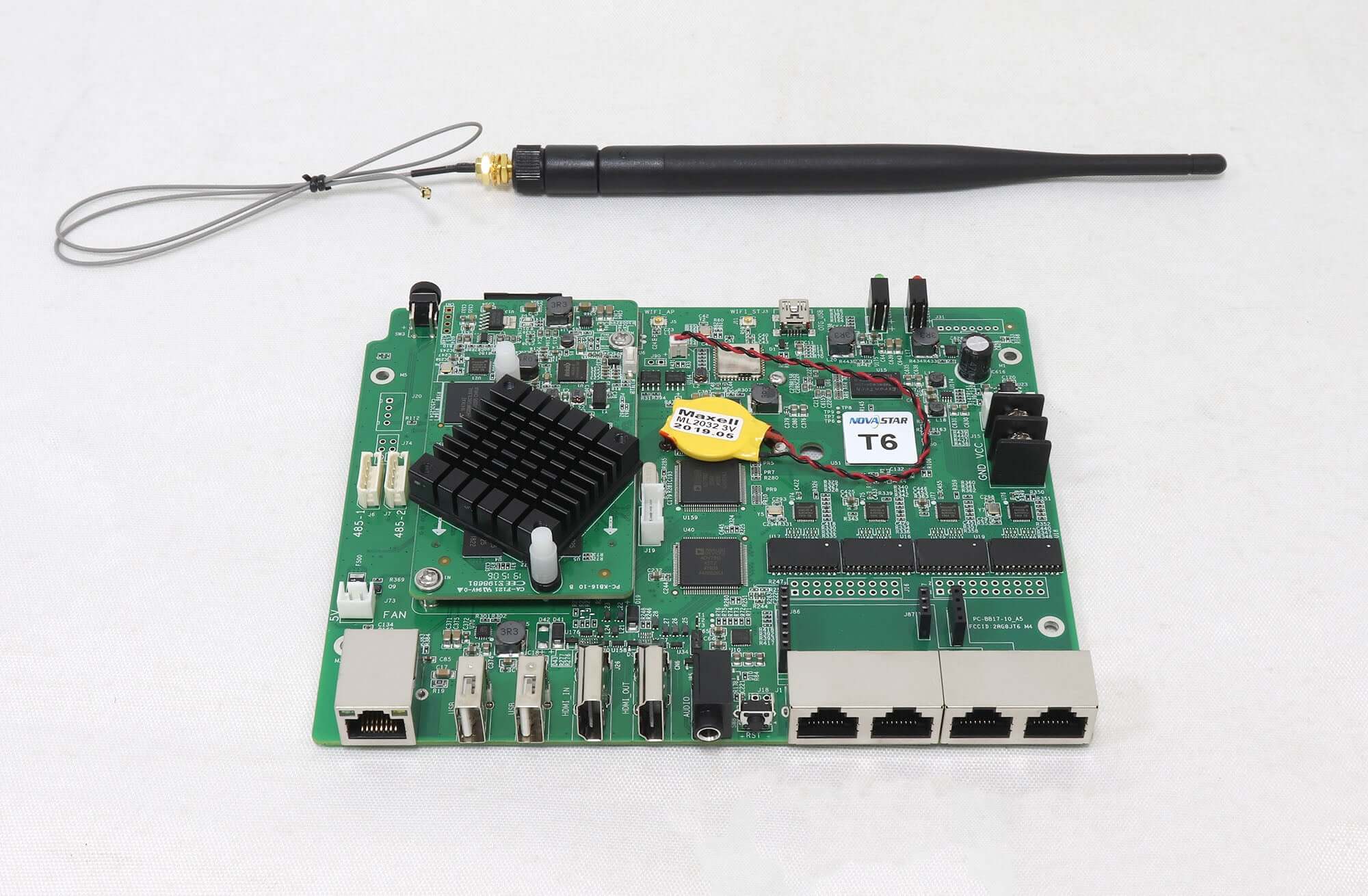

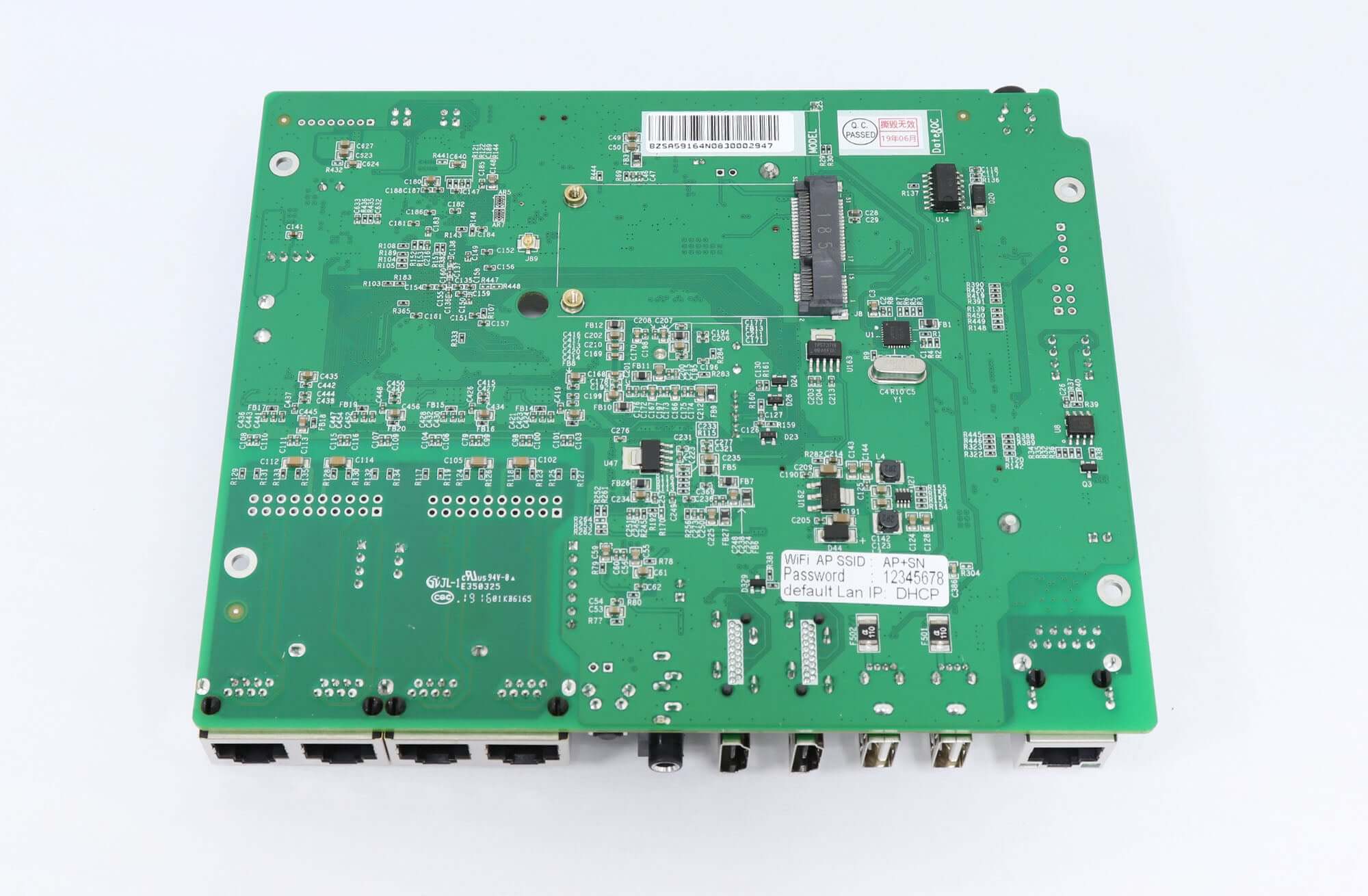

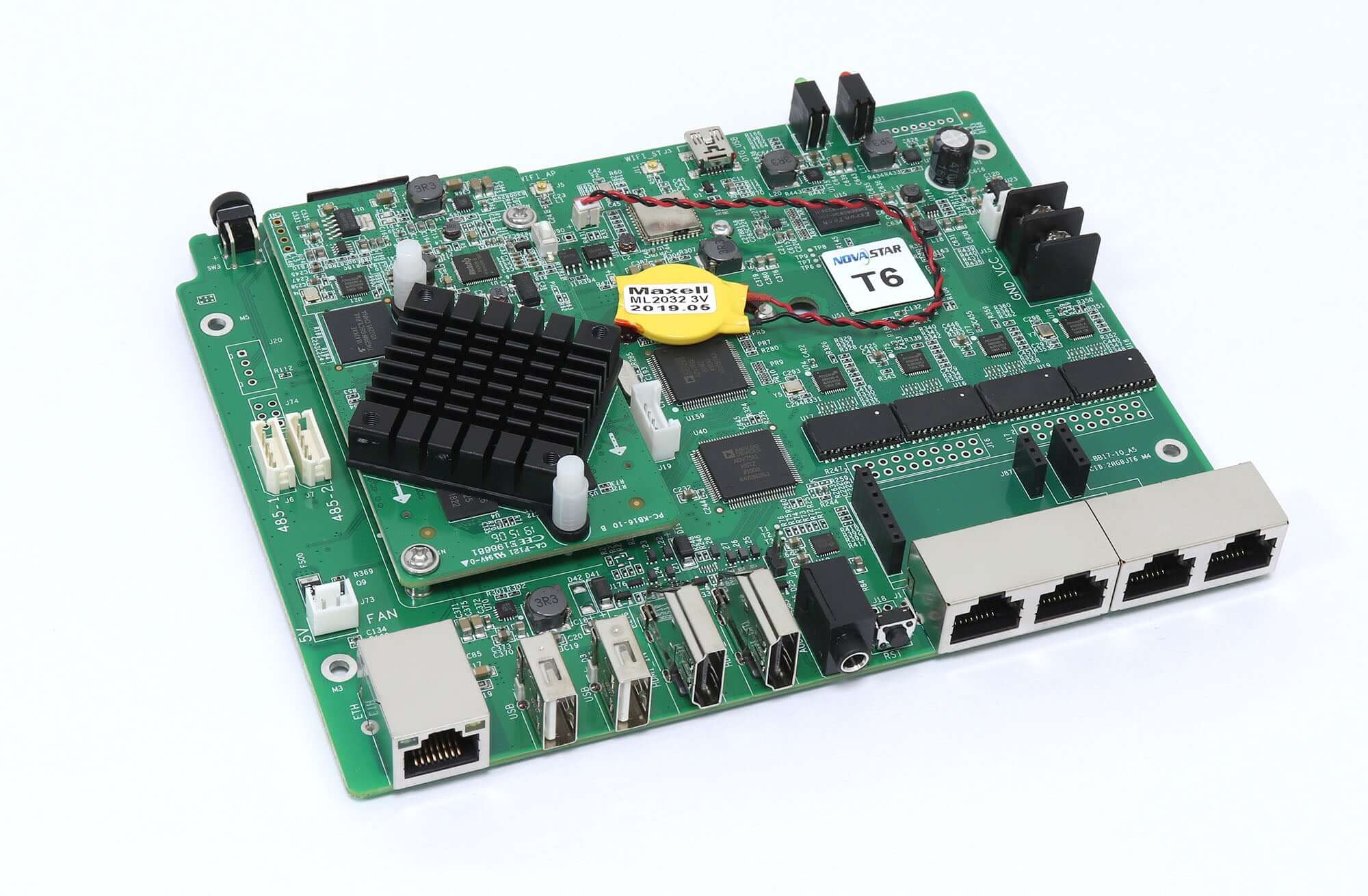

More Pictures of Novastar Taurus Series T6 Large Screen Multimedia Player Control Card:
