NovaStar T30 LED Multimedia Player | 1.3M Pixels & 32GB
$ 180.00
NovaStar T30 integrates media playback and LED sending for up to 1.3 million pixels. It includes an eight-core 1.5 GHz processor, 1 GB RAM and 32 GB storage with 28 GB available to users.
Two Gigabit LED ports support primary/backup operation or two primary outputs.
9998 in stock
NovaStar T30 for LED Signs and Billboards
The NovaStar T30 stores and plays content while sending it to a full-color LED display. Its 1.3-million-pixel capacity and remote publishing workflow suit lamp-post displays, retail signs and advertising screens. Local access is available through the built-in Wi-Fi AP, while wired or 4G networking supports internet-connected deployments.
Output Configuration and Content Storage
The two Gigabit LED outputs use one primary port and one backup port by default. Both can be configured as primary ports. Select the output mode to match the required screen layout and redundancy; a backup port does not add independent screen capacity.
The T30 has 32 GB of internal storage, with 28 GB available for user content. Its USB 2.0 port supports USB playback using FAT32, with a maximum file size of 4 GB. The specification excludes exFAT.
| Parameter | Specification |
|---|---|
| Loading capacity | Up to 1,300,000 pixels |
| Maximum screen dimensions | 4096 pixels wide or 4096 pixels high, within total loading capacity |
| LED Ethernet outputs | 2 Gigabit ports; primary/backup by default, configurable as 2 primary ports |
| Processor | Eight-core, 1.5 GHz |
| RAM | 1 GB |
| Internal storage | 32 GB; 28 GB available to users |
| Video decoding | H.264: 4K at 25 fps or 1080p at 60 fps; H.265: 4K at 60 fps or 1080p at 60 fps |
| USB | 1 USB 2.0 port for playback |
| USB file system | FAT32; maximum file size 4 GB; exFAT not supported |
| Local wireless access | Built-in Wi-Fi AP |
| Internet access | Wired network or 4G; wired network has priority |
| Audio / brightness control | Stereo audio output; onboard light-sensor connector |
| Input voltage / maximum consumption | DC 5–12 V / 18 W |
| Dimensions | 170.0 × 99.5 × 30.2 mm |
| Net weight | 248.9 g |
| Operating conditions | −20°C to +60°C; 0%–80% RH, non-condensing |
| Protection rating | IP20 |
| Third-party applications | Not supported |
Brightness Control and Synchronized Playback
Connect a light sensor to the onboard connector and set brightness rules in ViPlex or VNNOX for automatic or scheduled adjustment. For installations needing closely synchronized playback, the manufacturer recommends time synchronization modules.
In the documented RF setup, one T30 is the time-reference master and does not load a display; the slave units load the screens. Plan that extra reference unit and the required modules as part of the system. The documented 4G capability does not establish which mobile-network hardware is included in a particular order.
The T30 is rated IP20. A billboard or lamp-post installation needs to protect the controller from water; the application name does not make the controller weatherproof.

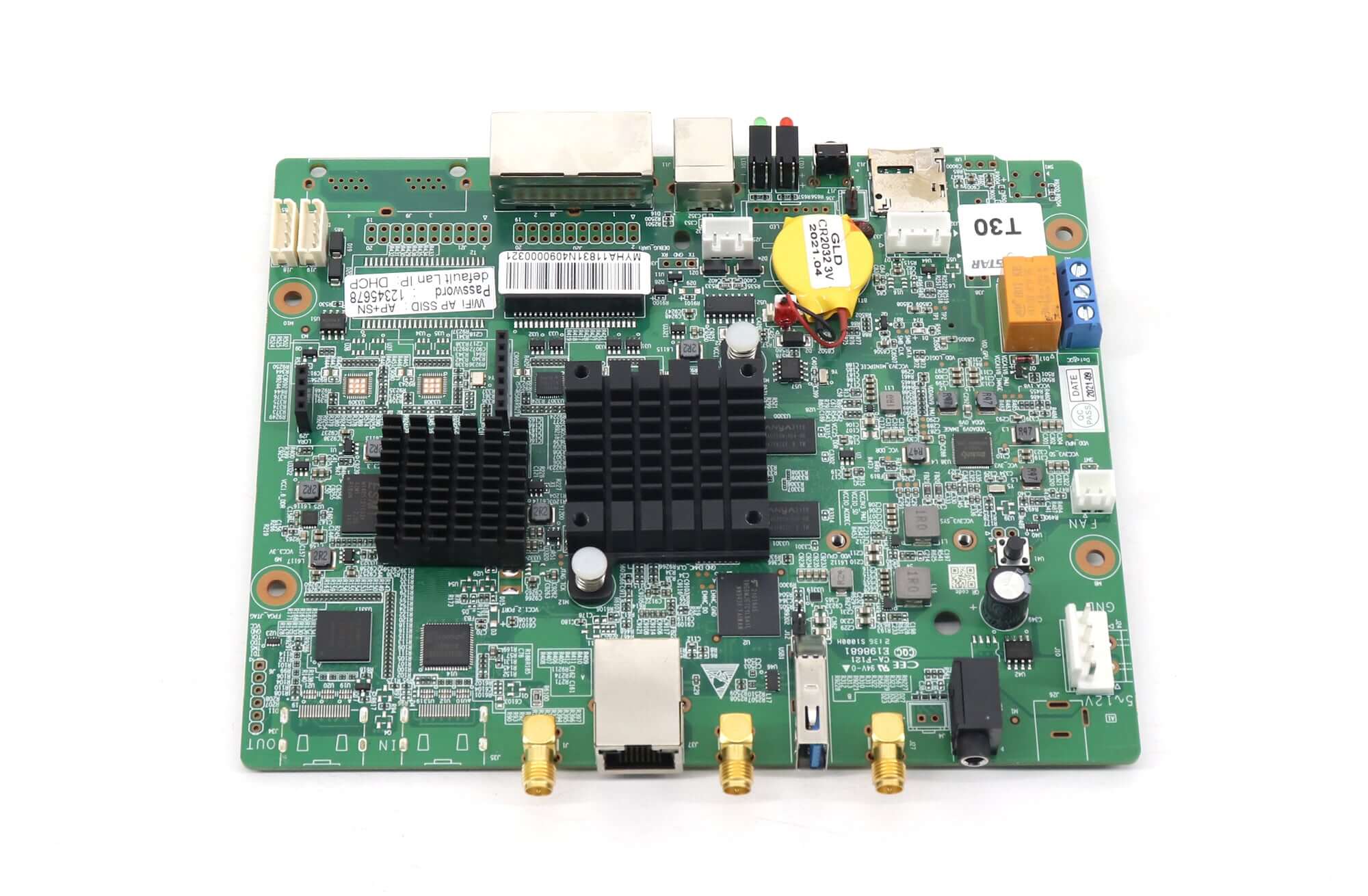

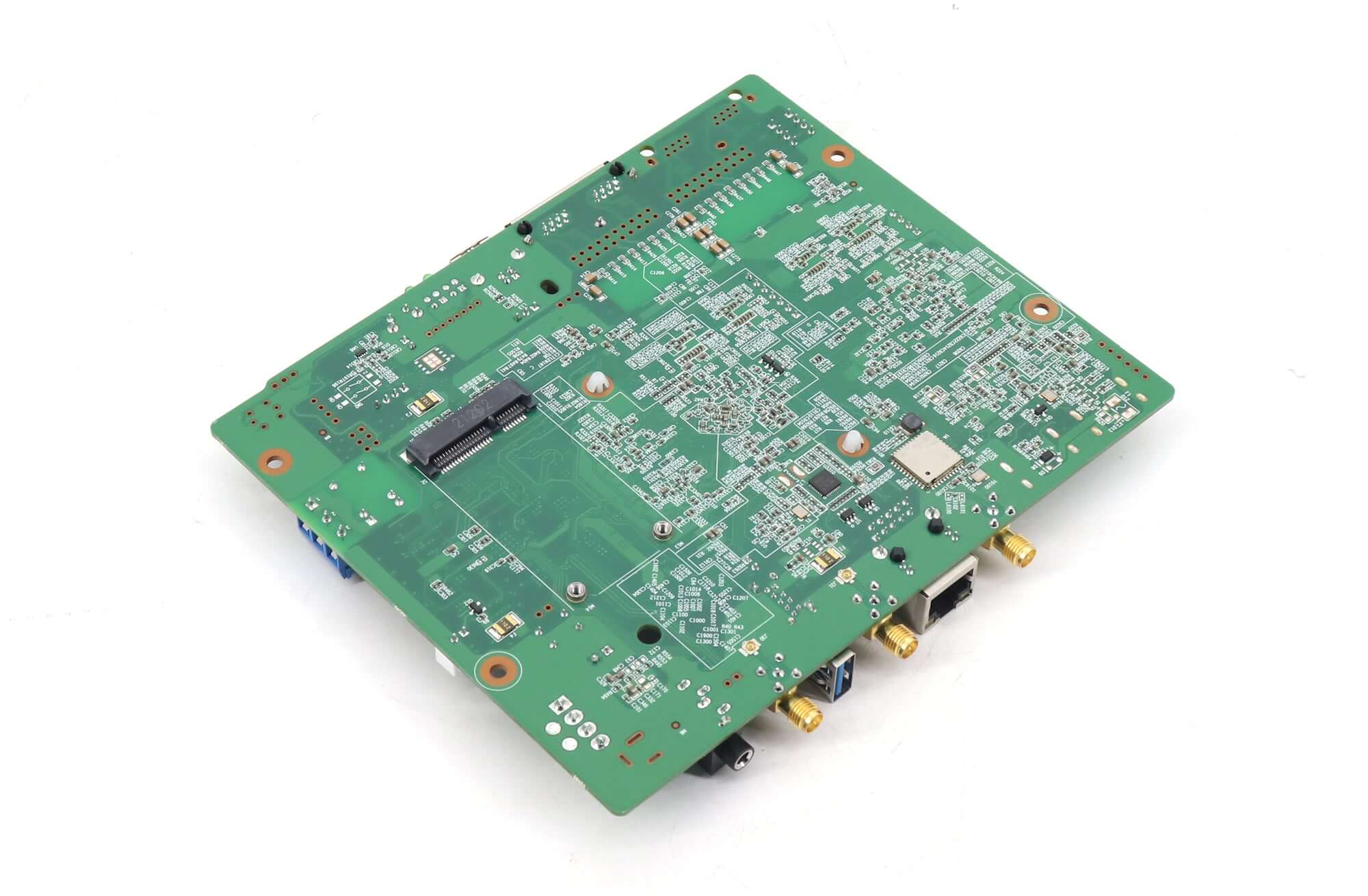

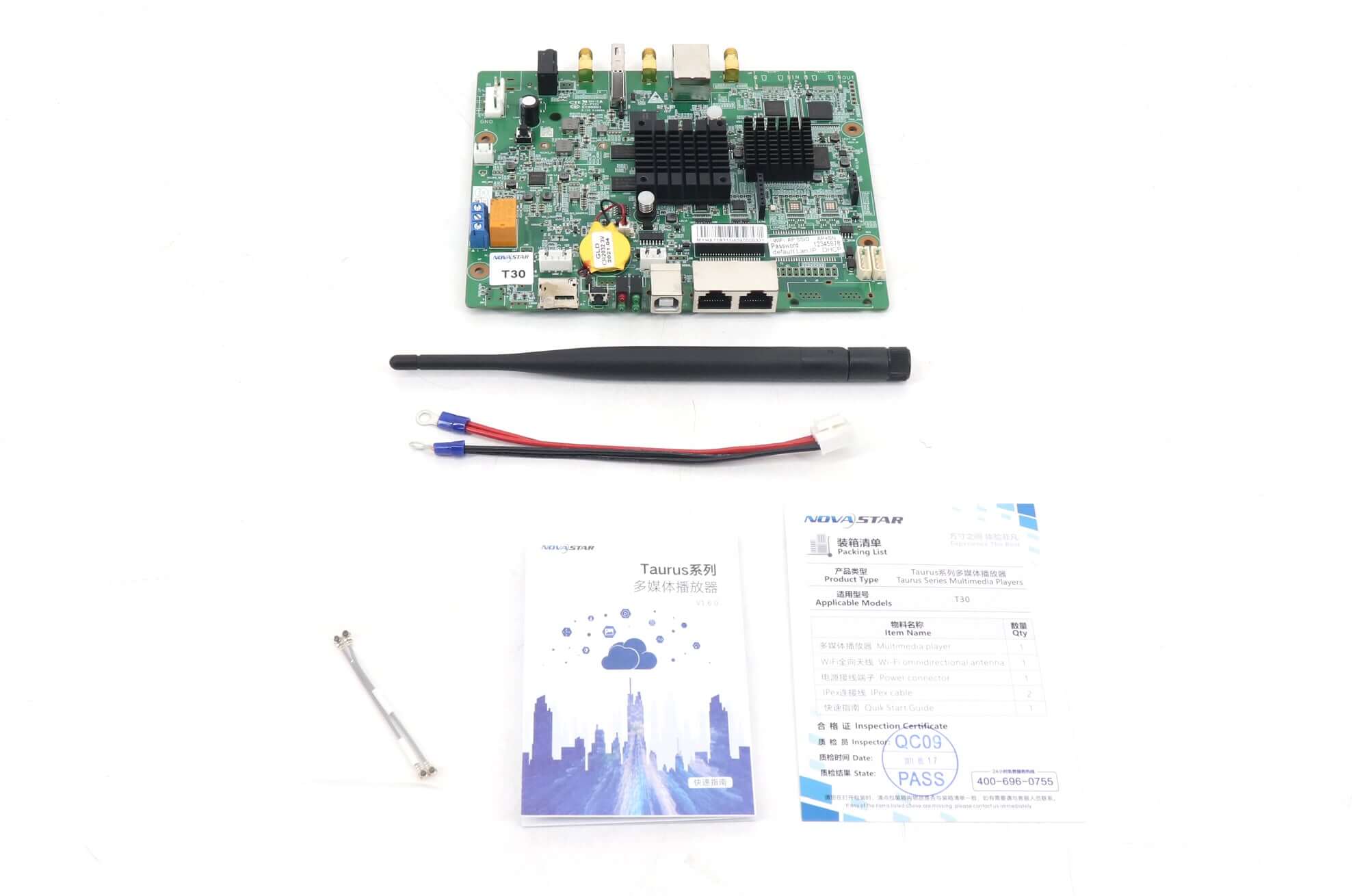

Product Images
Specification PDF
Download the NovaStar T30 V1.1.0 specification
Frequently Asked Questions
What is the T30 loading capacity?
The T30 supports up to 1.3 million pixels. Maximum width and height are each 4096 pixels, while the total display must remain within the pixel capacity.
Are both LED Ethernet ports primary outputs?
By default, one is primary and the other is a backup. Both can be configured as primary ports when required. A backup port does not add an independent output load.
Which USB format does the T30 support?
The V1.1.0 specification lists FAT32 with a maximum file size of 4 GB. It does not support exFAT. The USB interface is USB 2.0.
How much storage is available for content?
The T30 provides 32 GB of internal storage, with 28 GB available to users, and 1 GB of RAM.
How does T30 RF synchronization work across multiple displays?
The documented arrangement uses one T30 as the RF time-reference master without a connected display. Other units operate as slaves and load the displays. Time synchronization modules are recommended for installations with strict synchronization needs.
