Huidu HD-Y1 Multifunction Card – 8-channel Relay Control
$ 60.00
HD-Y1 adds auxiliary control and monitoring to a Huidu T901 LED display system. Features include 8 relay-control channels, timed switching, one audio output and an onboard temperature/humidity module.
999 in stock

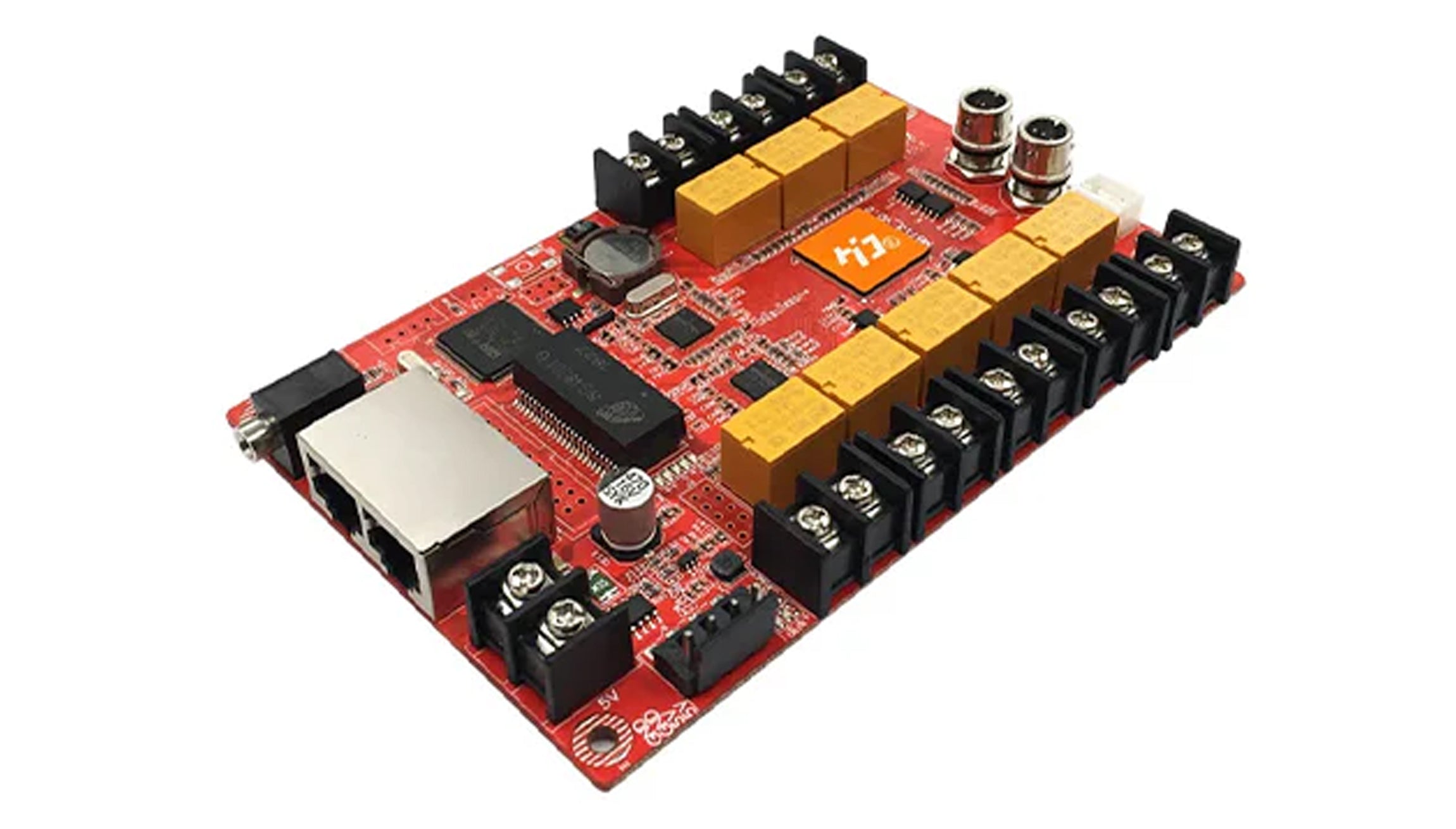

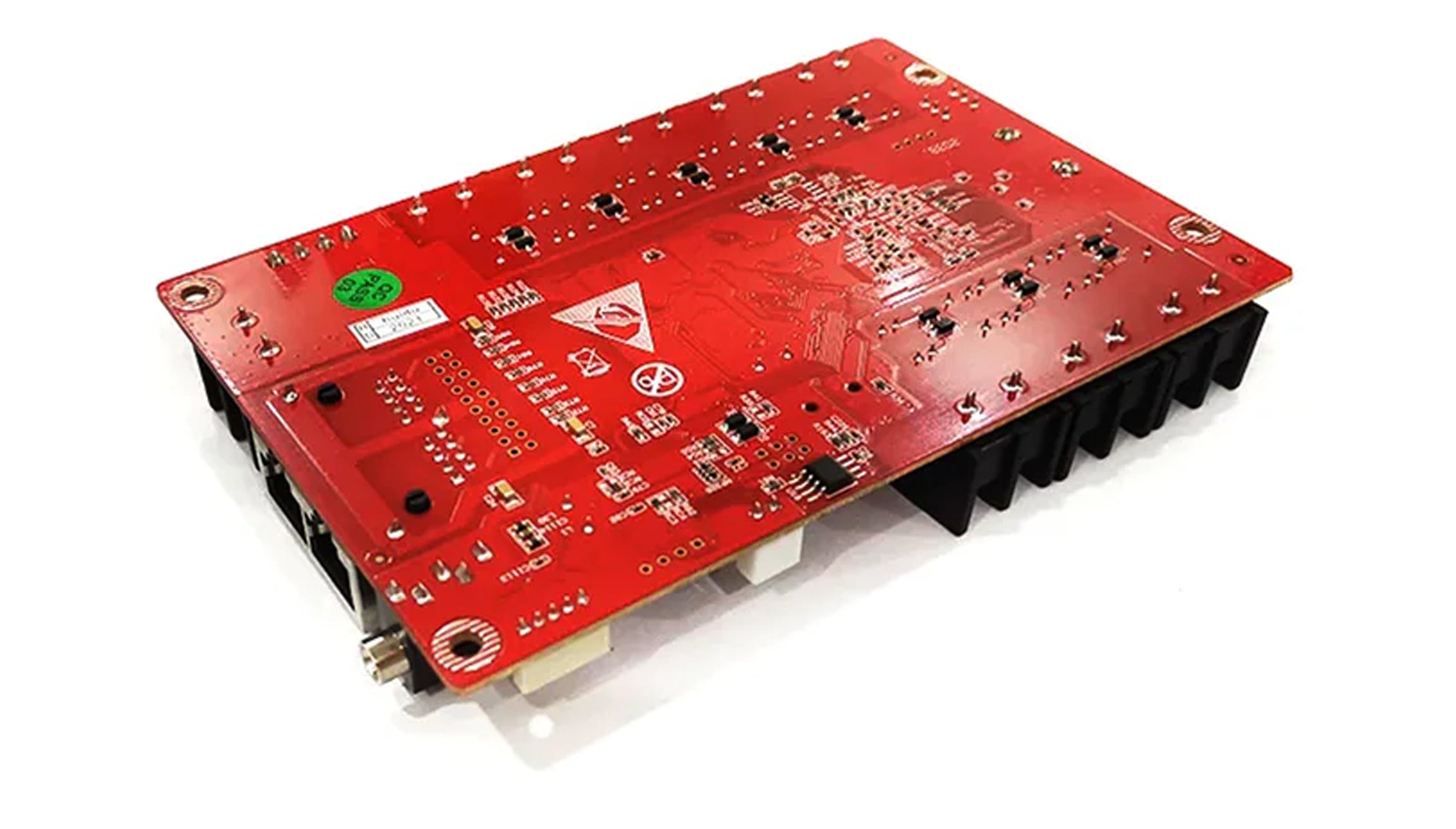

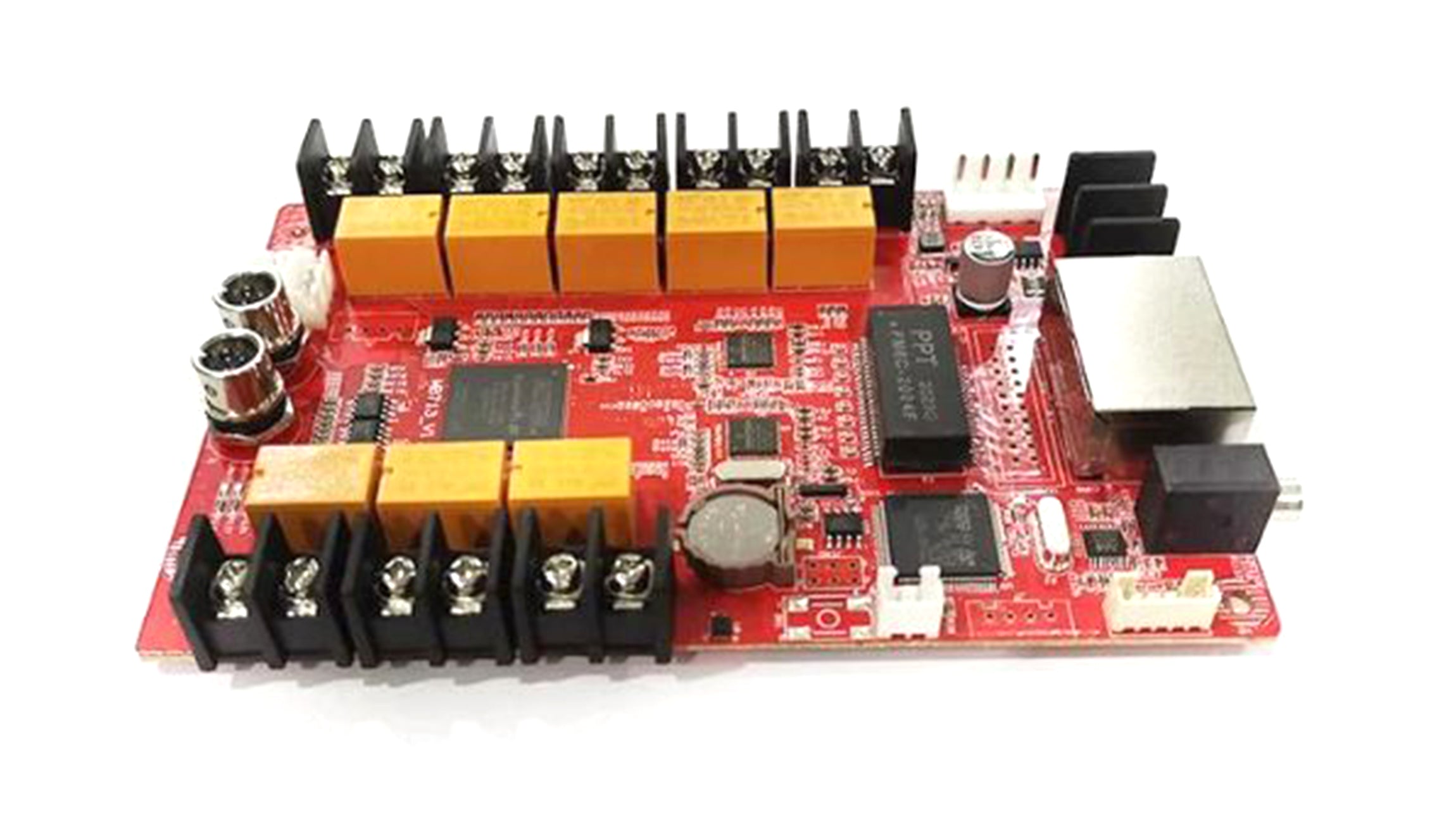

Huidu HD-Y1 LED Display Multifunction Card
The HD-Y1 provides power-switching control, audio output and environmental monitoring for an LED display system. It communicates with the T901 synchronous sending card through Gigabit Ethernet and can be placed before, between or after receiving cards in the cascade.
Relay Control and Cabinet Monitoring
Eight relay-switch channels support power control, including timed switching that can serve the timer function. An onboard temperature/humidity module monitors conditions inside the cabinet. External temperature or temperature/humidity modules can also connect through the designated interfaces.
| Parameter | Specification |
|---|---|
| Communication | Gigabit Ethernet; T901 synchronous sending-card communication |
| Network ports | 2 interchangeable Gigabit Ethernet ports |
| Cascade position | Before, between or after receiving cards |
| Relay control | 8 switch-control channels |
| Timed switching | Supported |
| Audio output | 1 channel |
| Onboard monitoring | Cabinet temperature and humidity |
| External temperature interface | P5: 18B20 single-temperature module |
| External temperature/humidity interface | P6: AM2301 module |
| Additional sensor interface | Brightness sensor interface |
| Power interfaces | Two 5 V power connections |
Interface Identification
In the original interface diagram, label 1 identifies audio output; 2 identifies the interchangeable network ports; 3 and 4 are 5 V power connections; and 5 identifies the switching terminals for screen, air-conditioning or fan power control. Label 6 covers the P5/P6 sensor interfaces, 7 is the brightness-sensor interface, 8 is listed as having no current function, and 9 is the onboard temperature/humidity module.
Use the specification to confirm wiring requirements and relay load ratings for the intended equipment before installation.
Specification Download
Download the Huidu HD-Y1 specification (PDF)
Frequently Asked Questions
Can the HD-Y1 work with the T901 sending card?
Yes. The product information lists communication with the T901 synchronous sending card through Gigabit Ethernet.
Where can the HD-Y1 be placed in the receiving-card chain?
It can be cascaded before, between or after receiving cards. Its two Gigabit Ethernet ports are interchangeable.
How many relay channels does the HD-Y1 provide?
It supports eight relay-switch control channels and timed switching. Confirm the relay load ratings for the connected equipment from the specification.
Does the HD-Y1 monitor cabinet temperature and humidity?
Yes. An onboard temperature/humidity module monitors conditions inside the cabinet. External sensors are also supported through the designated interfaces.
Which external temperature sensors are identified for the HD-Y1?
P5 is identified for an 18B20 single-temperature module, and P6 for an AM2301 temperature/humidity module. A separate brightness-sensor interface is also listed.
| Weight | 1 kg |
|---|
