Huidu HD-R516 LED Receiving Card – 16 HUB75E, 256 × 512
$ 12.50
HD-R516 is a full-color LED receiving card with 16 HUB75E interfaces and two interchangeable Gigabit Ethernet ports. Its recommended loading is 256 × 512 pixels, subject to the listed indoor and outdoor module-width limits.
HD-R516 LED Receiving Card
The Huidu HD-R516 connects compatible sending equipment to HUB75E LED modules. It supports common driver IC modules and most PWM IC modules, with scan modes from static to 1/64 scan.
| Parameter | Specification |
|---|---|
| Module interfaces | 16 × HUB75E |
| Network interfaces | 2 × 1 Gbps Ethernet; interchangeable for sending-card or receiving-card connections |
| Recommended load | 256 × 512 pixels |
| Module-width limits | Outdoor ≤256 pixels; indoor ≤128 pixels |
| Scan range | Static to 1/64 scan |
| Grayscale | 256–65536 |
| Multi-card connection | Cards may be arranged in any sequence |
| Cable distance | Within 146 m using Super Cat5 or Cat6 cable |
| Power connections | 2 × 5 V DC |
| Input voltage — specification page 2 | 4–6 V |
| Power-interface description — page 5 | 4.5–5.5 V DC |
| Rated voltage — page 5 | Minimum 4.2 V; typical 5.0 V; maximum 5.5 V |
| Working temperature — page 2 | −40°C to 85°C |
Compatible Sending Equipment
- Dual-mode players: A4, A5, A6, A601, A602 and A603.
- Asynchronous controllers: A3, A30, A30+, C10, C10C, C30, C15, C15C, C35 and C35C.
- Synchronous controllers: T901, T901B and T901S.
- Video processors: VP210 and VP410.
Indicators, Testing and Power
A flashing D1 indicator shows normal card operation. Rapid D2 flashing indicates that a Gigabit connection has been recognized and data is being received. External run and data indicators are also supported. The test button checks display brightness uniformity and module flatness; smart settings configure the screen-unit arrangement.
The V0.1 specification gives different voltage ranges in its parameter table, interface description and rated-voltage table. These are shown separately above. Its precautions recommend a standard 5 V supply for stable operation. Confirm the applicable limits for the supplied hardware before installation.

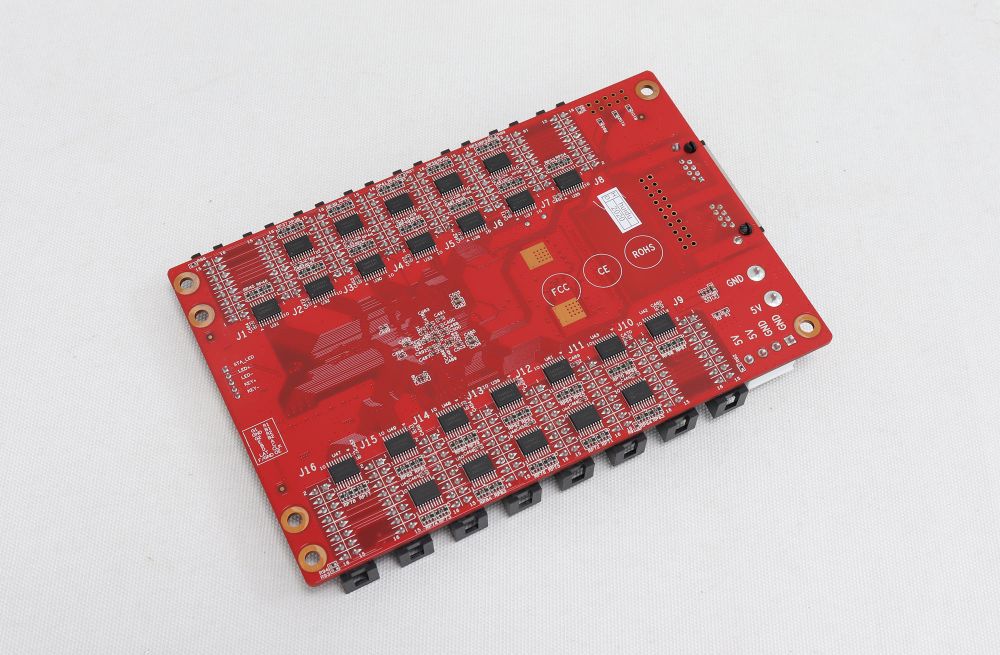

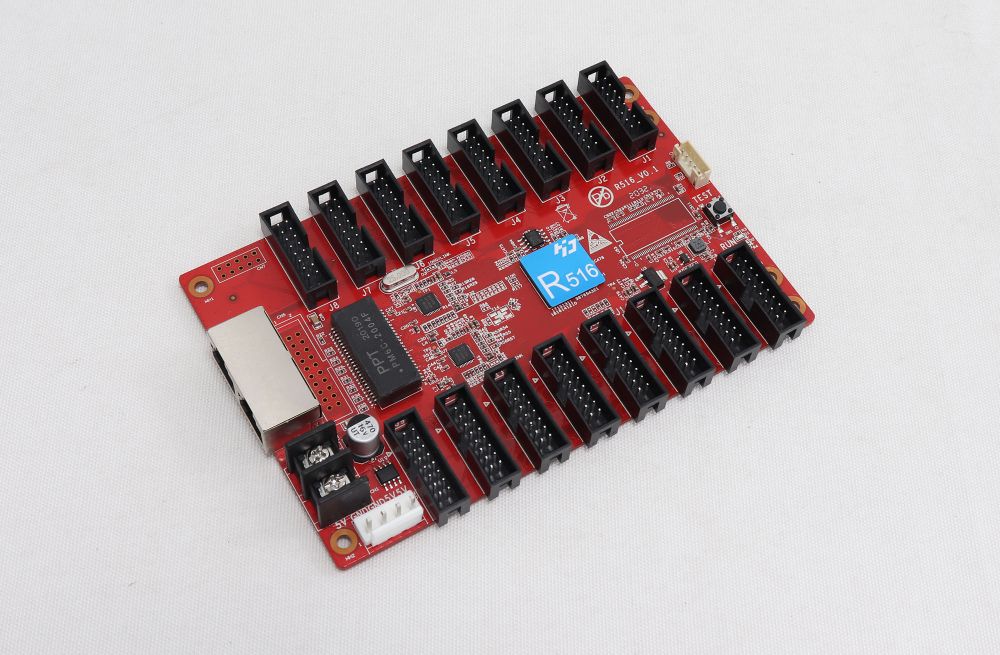

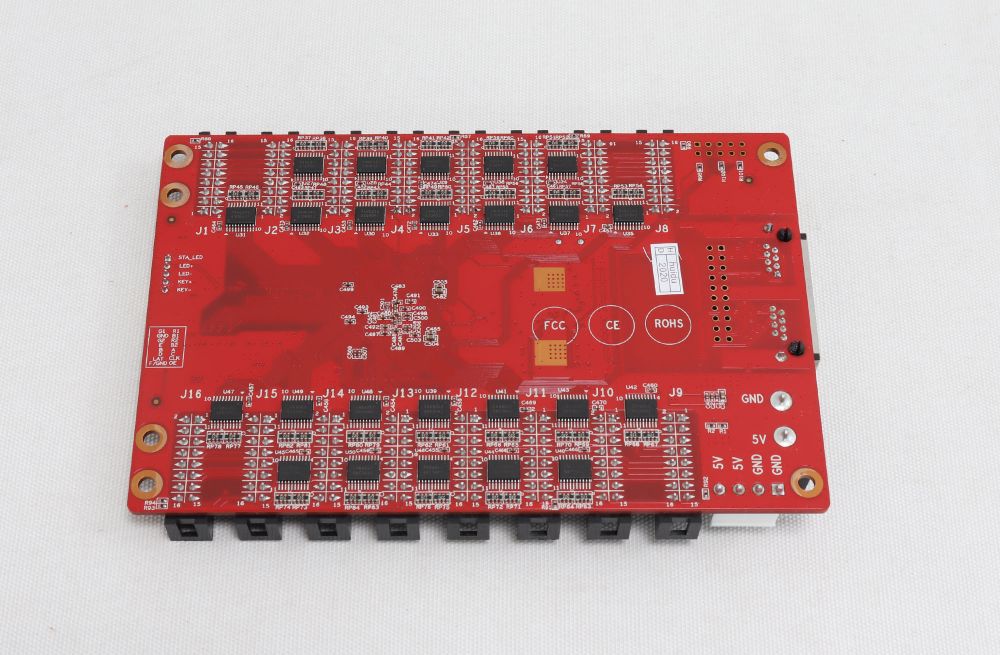

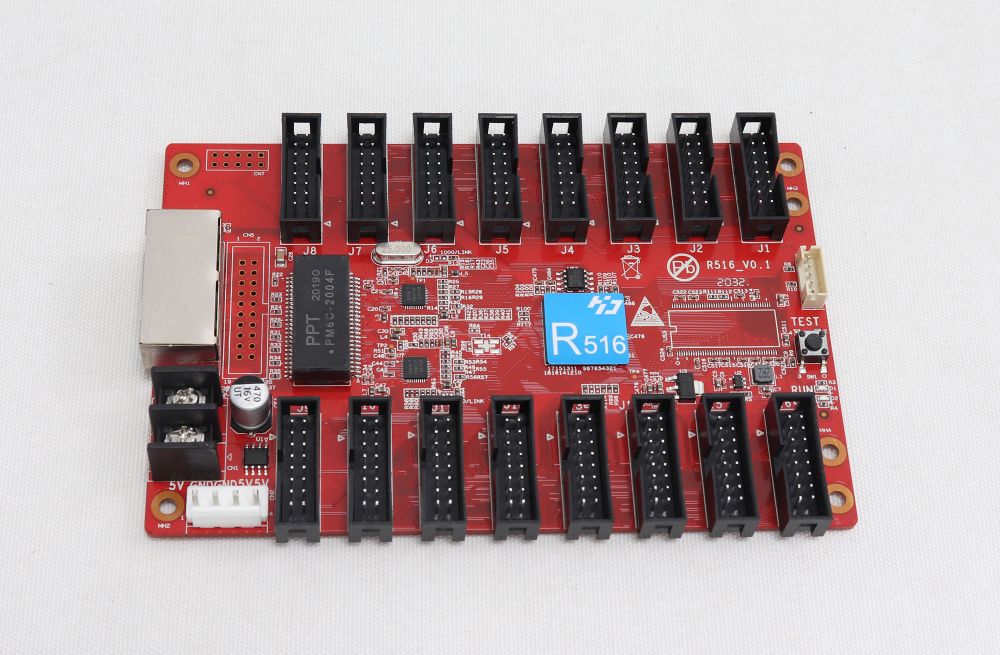

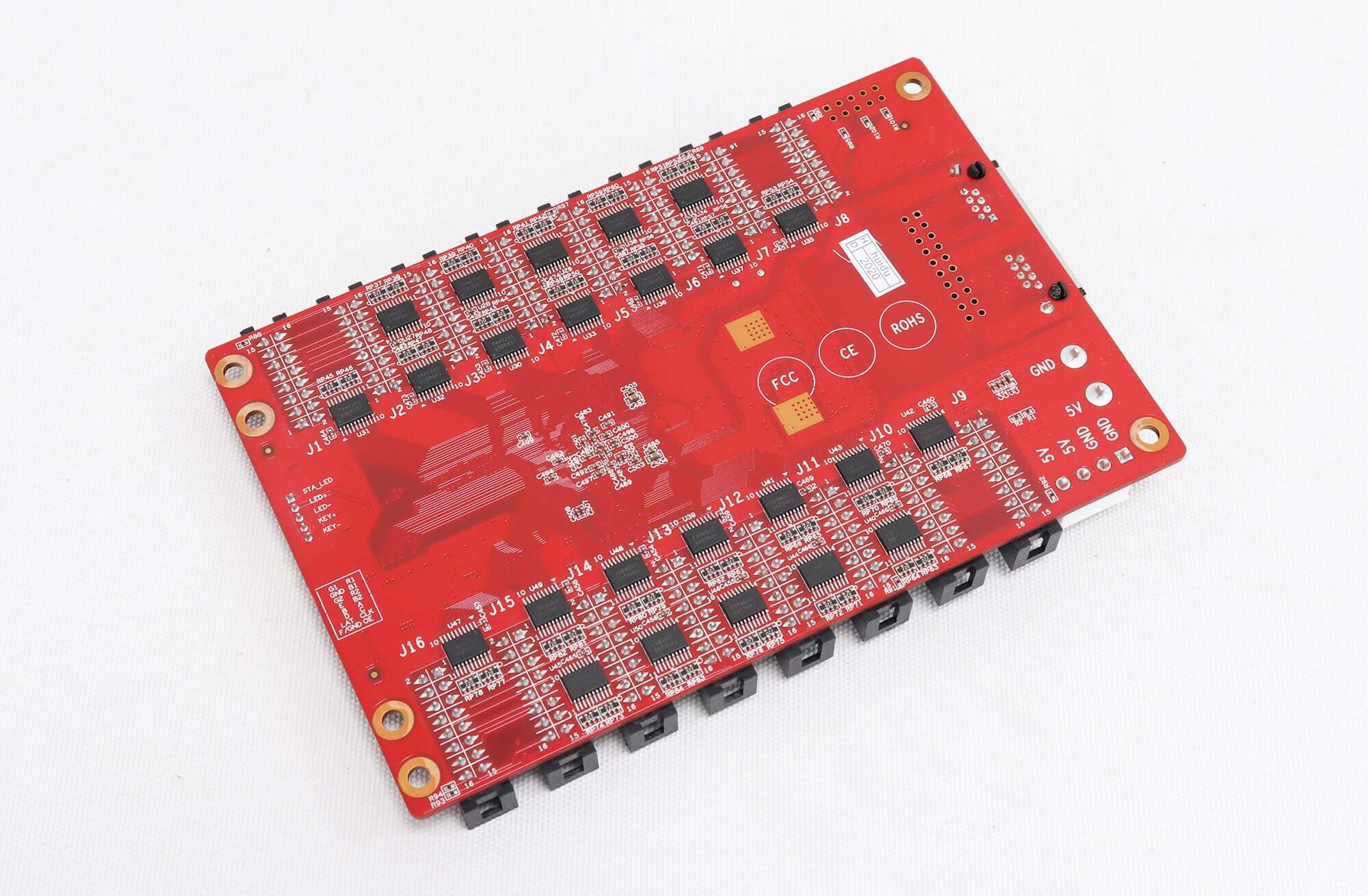

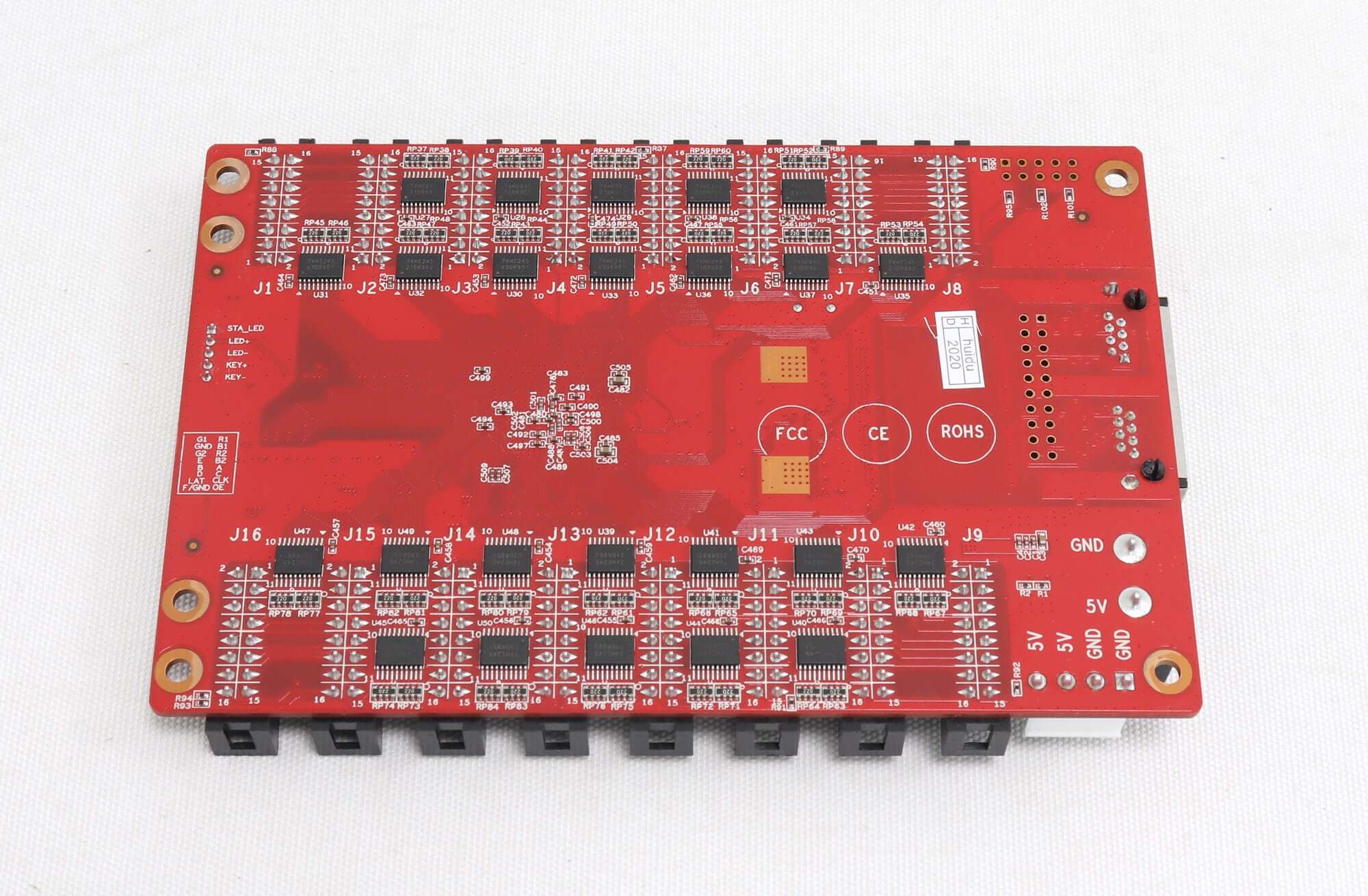

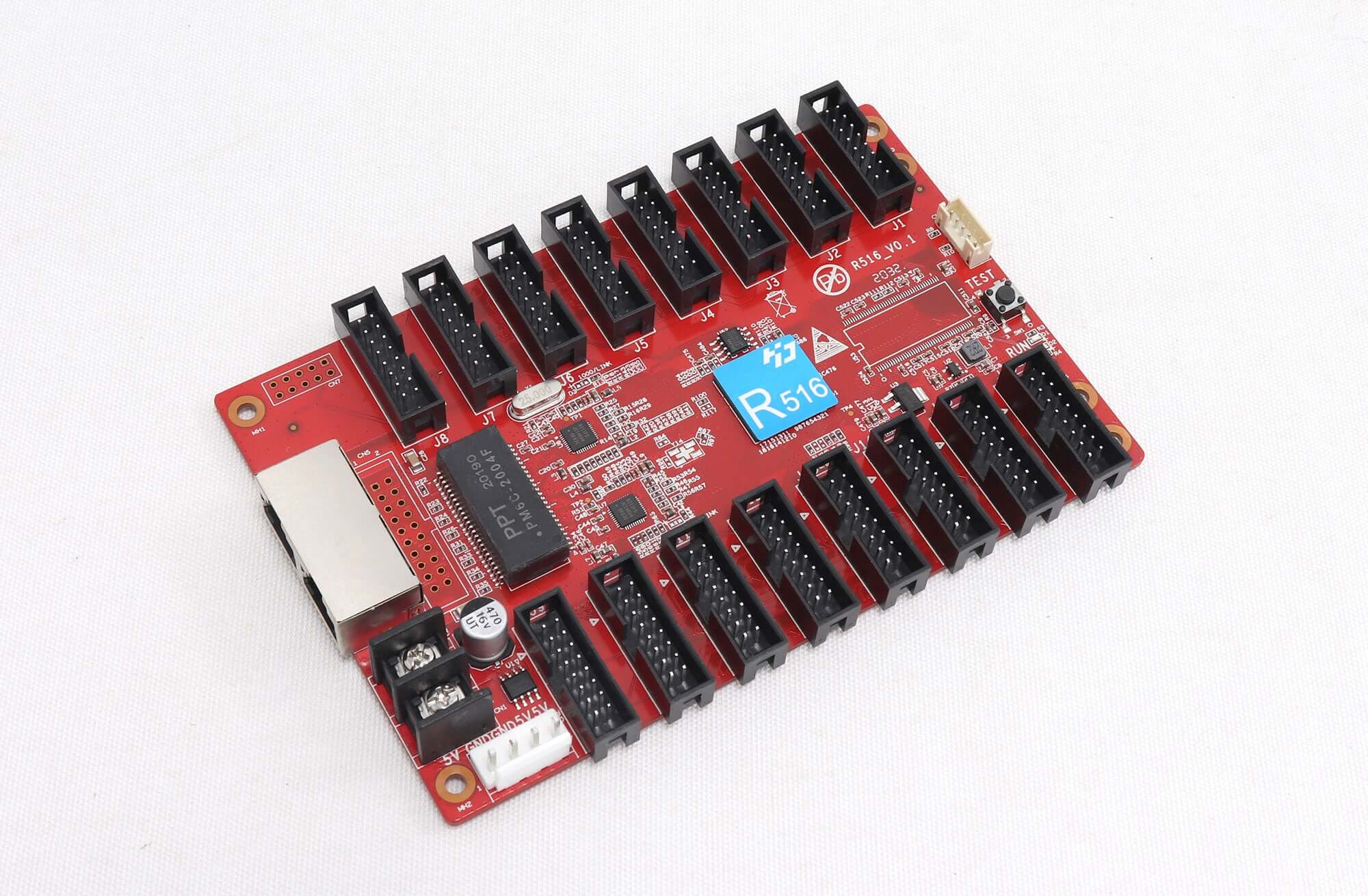

Product Images
Specification Download
Download the HD-R516 V0.1 specification (PDF)
Frequently Asked Questions
How many HUB75E interfaces does HD-R516 have?
The card has 16 HUB75E module interfaces and two interchangeable 1 Gbps Ethernet ports.
What is the recommended R516 loading capacity?
The specification recommends 256 × 512 pixels. It also limits outdoor module width to 256 pixels and indoor module width to 128 pixels.
Does HD-R516 support 1/64-scan LED modules?
Yes. The listed scan range runs from static to 1/64 scan. Common IC modules and most PWM IC modules are supported.
What do the D1 and D2 indicators mean?
D1 flashing indicates normal operation. Rapid D2 flashing indicates a recognized Gigabit connection and incoming data.
What power supply does HD-R516 use?
The specification recommends a standard 5 V supply. It lists differing voltage ranges in separate sections; consult the voltage rows above and confirm the requirements for the supplied hardware.
| Weight | 0.4 kg |
|---|
