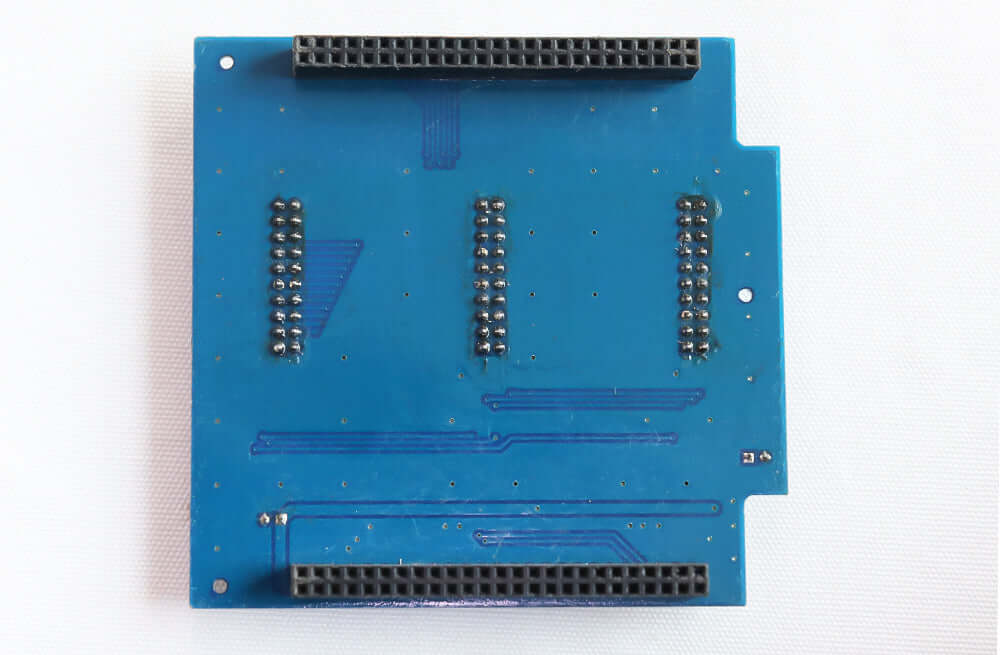

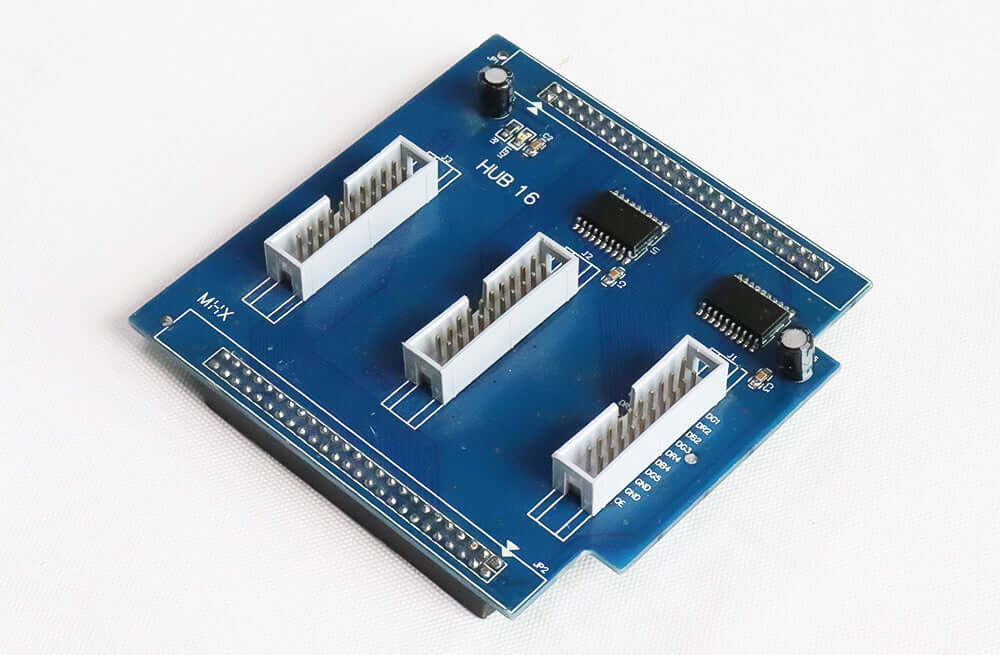

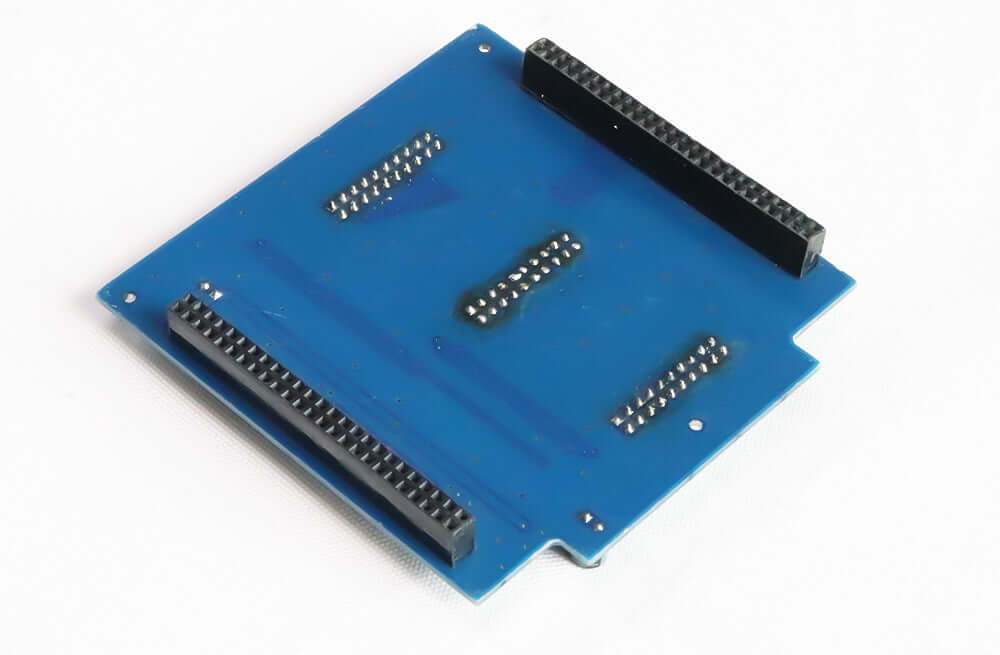

Use the pin-one mark to orient the connector. The map begins with RD1 and GD1 on pins 1 and 2. Data labels in this definition run from RD1 on pin 1 to BD5 on pin 15.
Connector pin assignments
| Pin | Signal | Pin | Signal |
|---|---|---|---|
1 | RD1 | 2 | GD1 |
3 | BD1 | 4 | RD2 |
5 | GD2 | 6 | BD2 |
7 | RD3 | 8 | GD3 |
9 | BD3 | 10 | RD4 |
11 | GD4 | 12 | BD4 |
13 | RD5 | 14 | GD5 |
15 | BD5 | 16 | GND |
17 | CLK | 18 | GND |
19 | LAT | 20 | OE |
Frequently asked questions
Where are the control signals on HUB16?
CLK on pin 17, LAT on pin 19, OE on pin 20. Match these labels against the mating connector before installing the board.
Which positions are marked ground?
The interface definition marks 16, 18 as GND. Check the connector orientation before counting pin positions.
How can I check whether my module matches this card?
Compare each numbered signal with the module documentation, including data order, control signals and ground. Connector size alone cannot establish the wiring.
