Sysolution KD05 Compact MCU Card for LED Displays
$ 25.00
The KD05 compact MCU card is listed for creative, storefront and portable LED displays. It provides A–E scan signals, key reset and an adjustable 80–240 MHz clock. Confirm electrical ratings and module compatibility before installation.
10000 in stock
KD05 compact MCU card for creative LED displays
The KD05 is a small MCU card described for full-color storefront signs and portable displays such as backpack screens, taxi animations and vehicle sticker screens. Its original feature list identifies five scanning signals, adjustable clock frequency and key reset.
The parameter table contains only the details stated in the original description. The linked specification file currently returns 404, so power voltage, maximum pixel load and board dimensions have not been inferred. Check these items against a matching KD05 specification before choosing the module and power supply.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | KD05 |
| Product type | Compact MCU card for LED displays |
| Scan address signals | A, B, C, D and E |
| Adjustable clock frequency | 80–240 MHz |
| Reset function | Key reset supported |
| Applications listed in the original description | Full-color storefront signs, taxi animation displays, backpack screens, vehicle sticker screens, stall signs, creative displays and motorcycle screens |
| Module reuse | The original description states that secondary use of the module is not affected; verify the installation method for the actual module |
| Specification-file status | Original PDF link retained; the file returned 404 when checked |

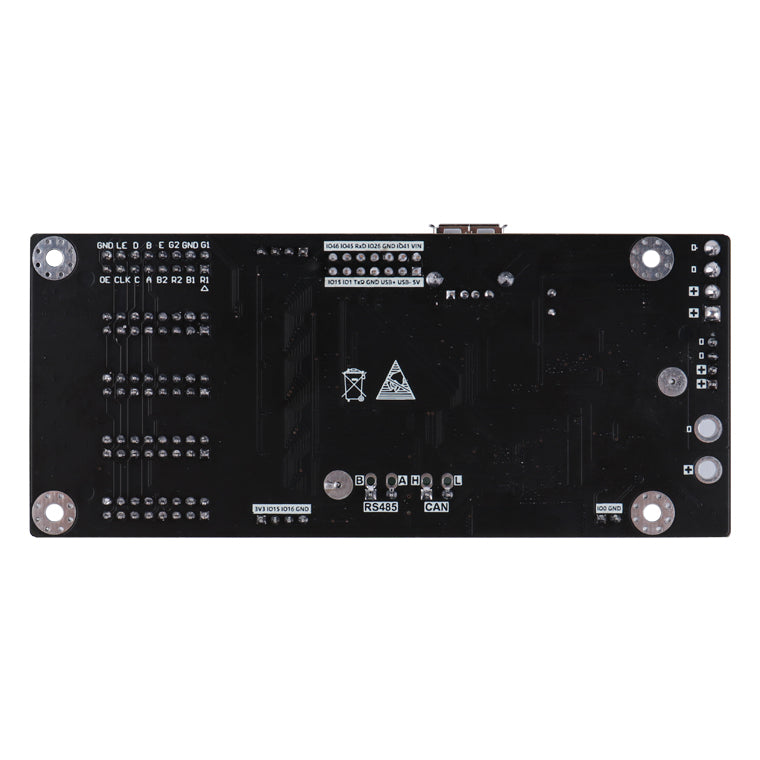

Product images and specification download
Sysolotion KD05 LED display Small size MCU card Specification
The original specification link is retained; the file was unavailable when checked.
Frequently asked questions
What clock frequency does the KD05 support?
The original product description specifies an adjustable clock frequency from 80 MHz to 240 MHz. This is a clock-frequency range, not a published LED refresh-rate or pixel-capacity rating.
Which scanning signals are available?
The listing identifies five scan address signals: A, B, C, D and E. Check the module interface and wiring before connecting a display; those signals alone do not establish a compatible scan configuration.
Does the KD05 have a reset function?
Yes. Key reset is explicitly listed in the original product description.
Can KD05 be used for a backpack or vehicle display?
Backpack, taxi, vehicle sticker and motorcycle displays are among the applications listed. The available text does not specify vehicle power input or weatherproofing, so confirm the power arrangement, enclosure and module compatibility for the installation.
Where are the KD05 power and pixel-capacity specifications?
Those ratings are not provided in the readable original product description. The original PDF link is retained, but returned a file-not-found response when checked. Obtain the model-matched specification before selecting a power supply or final screen layout.
