P4 Indoor 240x120mm Full Color LED Screen Soft Flexible LED Module

P4 Indoor 240x120mm Full Color LED Screen Soft Flexible LED Module

P2 SMD1515 Indoor HD 320x160mm Soft Flexible LED Module

P2 SMD1515 Indoor HD 320x160mm Soft Flexible LED Module can be used for curved iron cabinets
$51.90
More Information
Weight(kg) 0.70 kgs
Manufacturer LED-MALL
Availability: In stock
SKU
P2 SMD1515 Indoor HD 320x160mm Soft Flexible LED Module

 Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don't offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.



P2 SMD1515 Indoor HD 320x160mm Soft Flexible LED Module Parameter:

LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD1515 38-50mcd 120° 618-623nm 25℃,8mA
Green 150-195mcd 120° 519-523nm 25℃,5mA
Blue 19-25mcd 120° 467-471nm 25℃,3mA
Module Parameter
Pixel Pitch 2mm
Pixel Configuration SMD1515
Density 250,000 pixels/
Module Resolution 160pixel(L) * 80pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 8.5mm(D)
Driving Mode Constant current, 1/40 duty
Electricity Parameter
Optical Ratings
Brightness ≥800 cd/
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥2m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Max. Power Consumption 21W
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥3,840Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100M (Ethernet cable);
20KM (Optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20+60 ºC
Storage Temperature -30+70 ºC
Working Humidity 10%90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP31
Out-of-Control Pixel Rate ≤0.01%

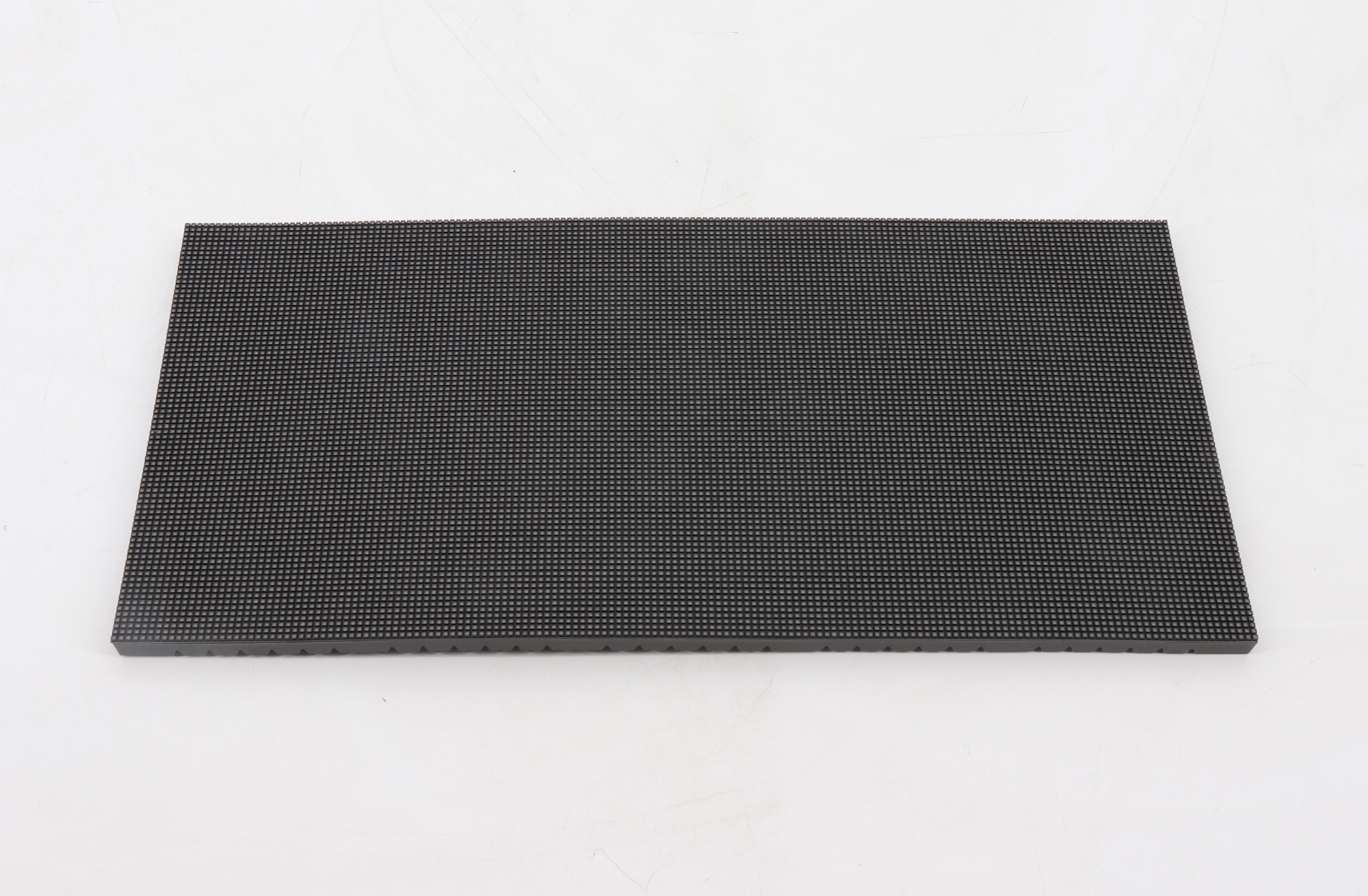

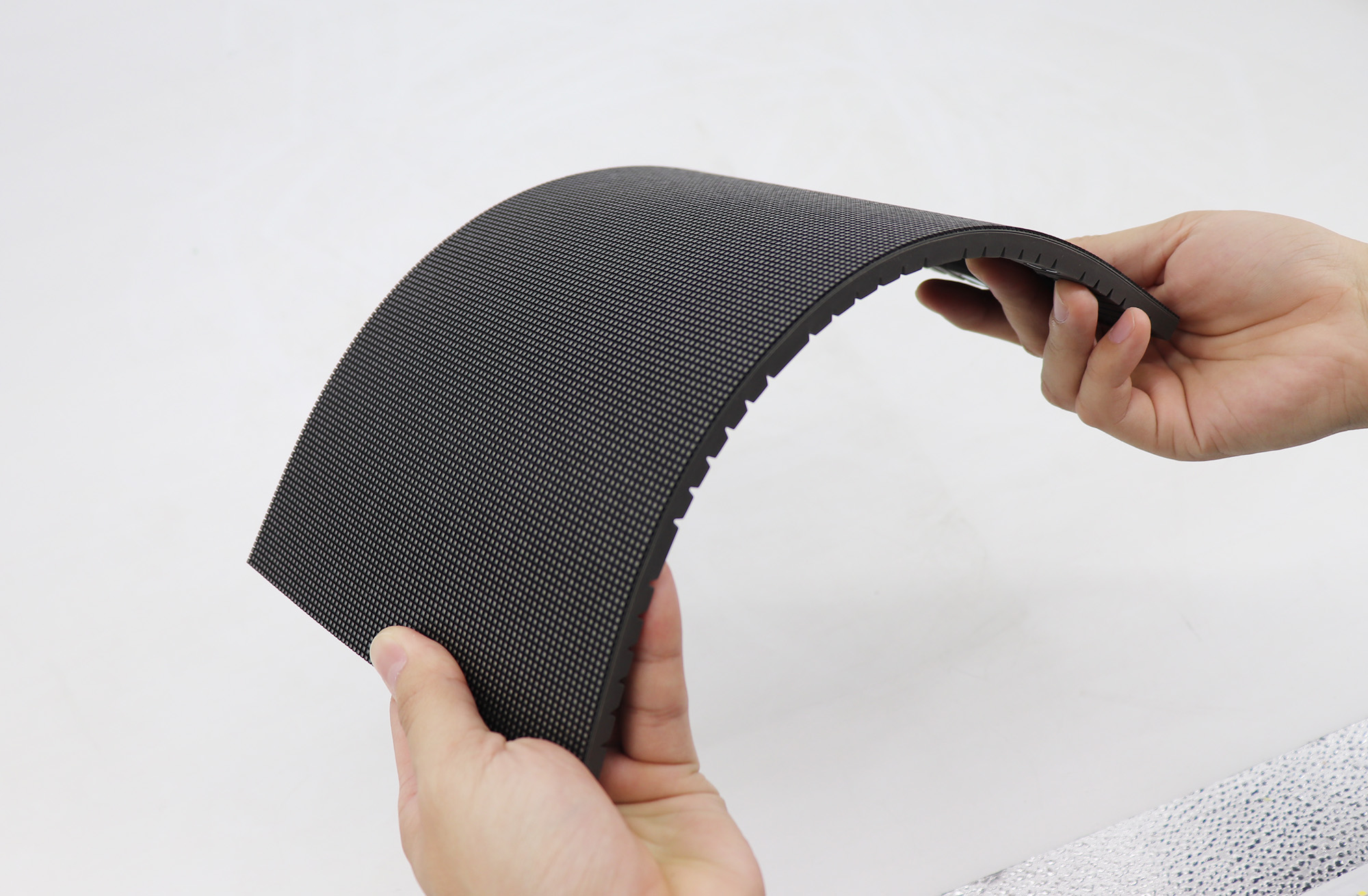

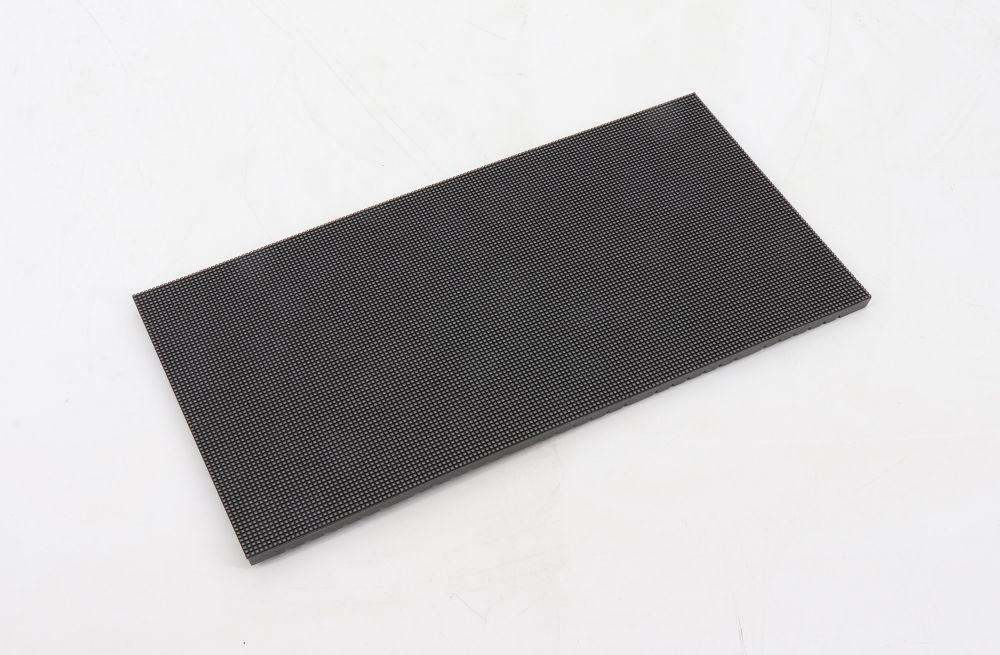

More Pictures of P2 SMD1515 Indoor HD 320x160mm Soft Flexible LED Module:





Download Specification

P2 SMD1515 Indoor HD 320x160mm Soft Flexible LED Module Specification
