MEAN WELL LRS-350-12 12V 29A 348W LED Power Supply
$ 22.00
MEAN WELL LRS-350-12 delivers 12V DC at a rated 29A, with 348W output power. It has a 215 × 115 × 30mm enclosure, switch-selected AC input and a built-in fan.
10000 in stock
LRS-350-12 power for 12V equipment
The MEAN WELL LRS-350-12 is a single-output AC/DC power supply rated at 12V, 29A and 348W. It can be selected for LED equipment and other loads that require a compatible 12V source, provided the current demand and installation conditions fit the datasheet limits.
LRS-350-12 specifications
| Parameter | Specification |
|---|---|
| Rated output voltage | 12V DC |
| Rated output current | 29A |
| Rated output power | 348W |
| Voltage adjustment | 10.2–13.8V |
| AC input | 90–132VAC or 180–264VAC, selected by switch |
| Input frequency | 47–63Hz |
| Typical efficiency | 85% |
| Maximum ripple and noise | 150mVp-p; datasheet test conditions apply |
| Dimensions (L × W × H) | 215 × 115 × 30mm |
| Working temperature | −25°C to +70°C; apply derating curve |
| Cooling | Built-in DC fan with ON/OFF control |
Load capacity and installation
Use 348W as the model’s rated continuous output figure under the specified conditions. Peak-load allowances in the datasheet are time-limited and should not be used as the normal operating load.
Before connecting AC power, set the input switch for the available mains voltage. Check the cabinet airflow and the derating curve, and compare terminal positions and mounting holes when replacing another supply.
Frequently asked questions
Is the LRS-350-12 rated at 350W?
The datasheet gives 348W for the 12V model, with a rated current of 29A.
What is the output adjustment range?
The specified range is 10.2–13.8V. Keep the adjusted voltage within the connected equipment’s permitted range.
Can the peak-load rating be used continuously?
No. The series’ peak-load allowance is time-limited. Use the rated output and applicable derating conditions for continuous load planning.
Can I use either 115VAC or 230VAC input?
Yes, within the stated ranges, with the selector set correctly. The input ranges are 90–132VAC and 180–264VAC; selection is by switch.

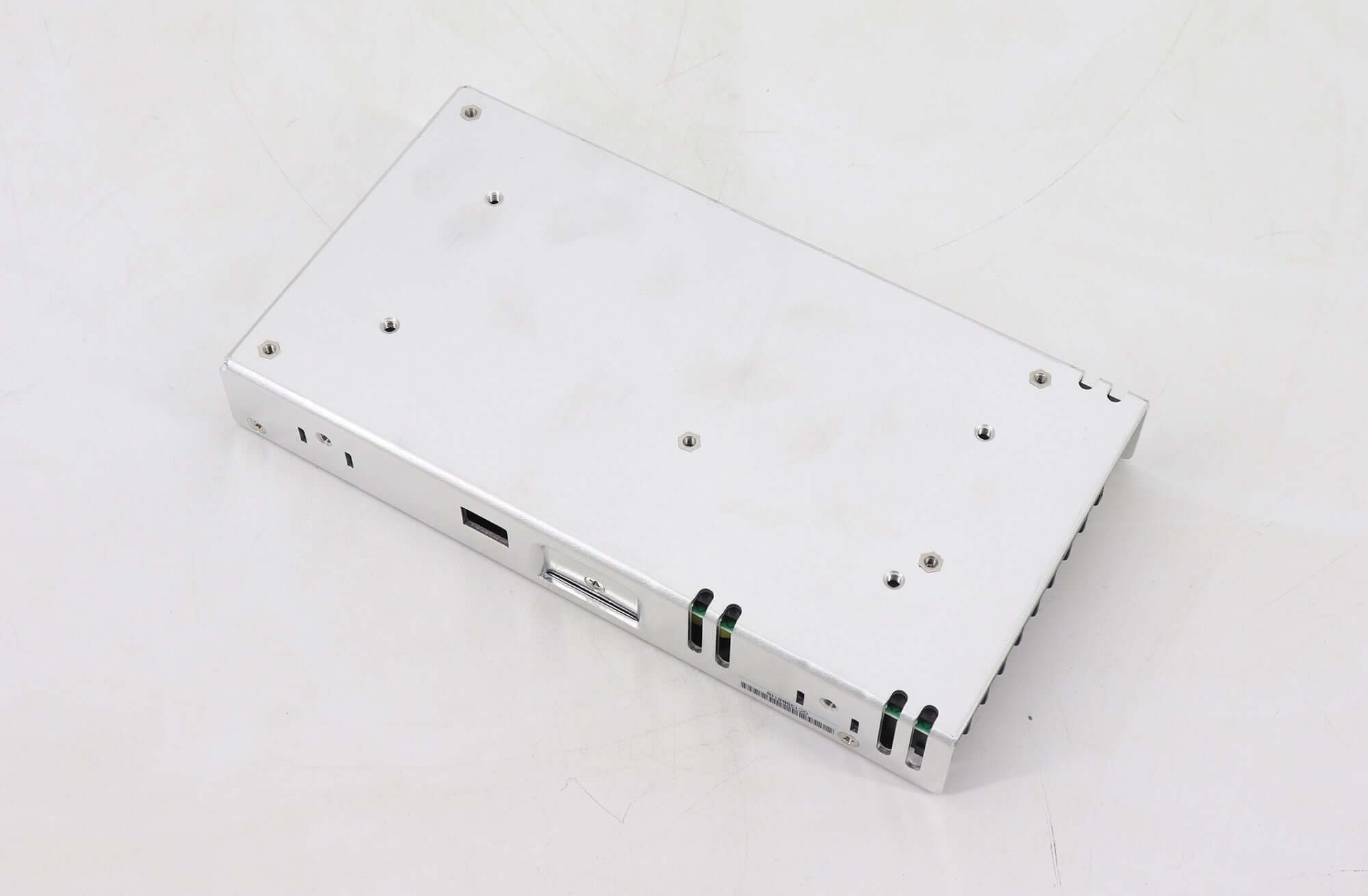

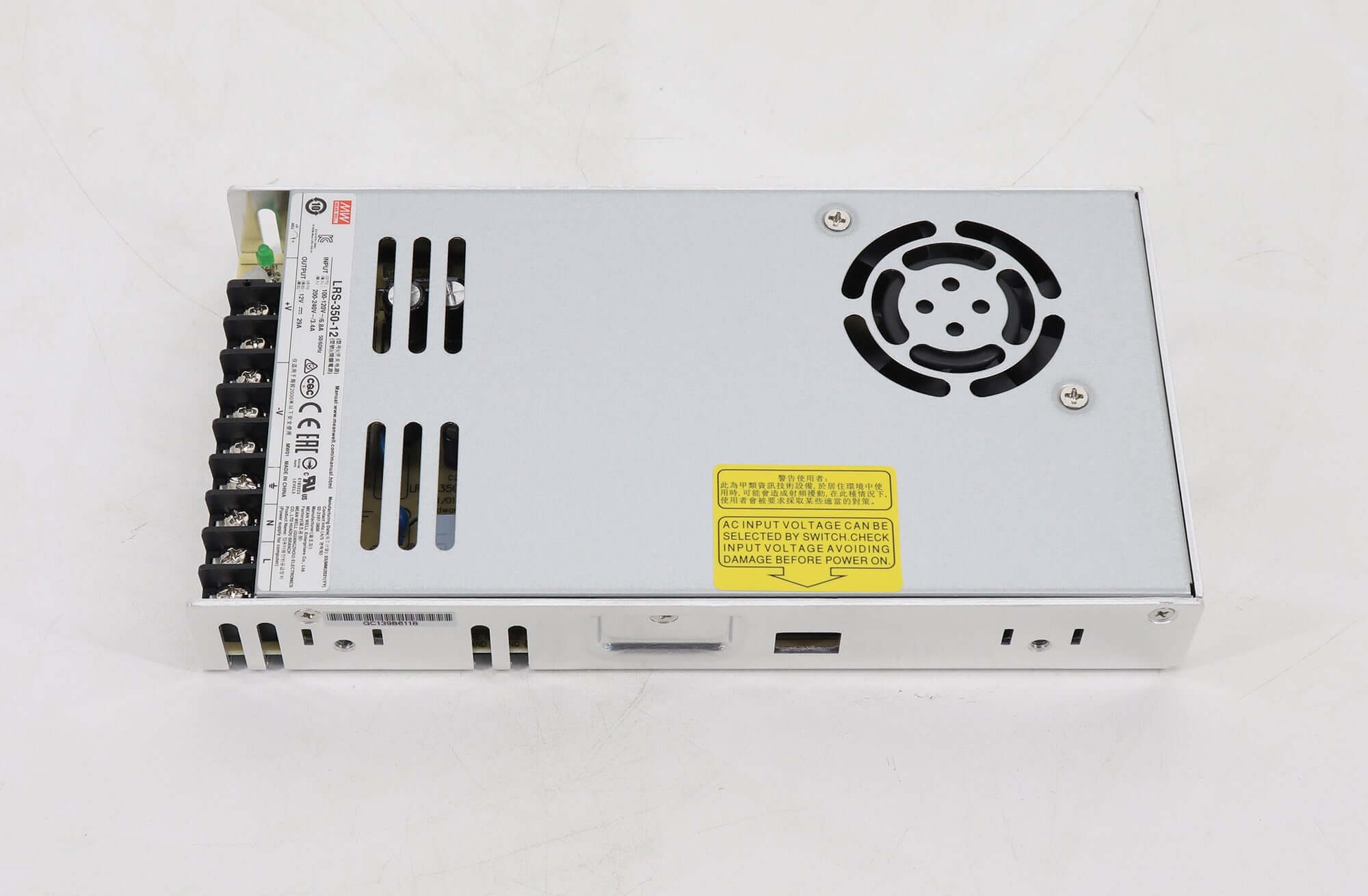

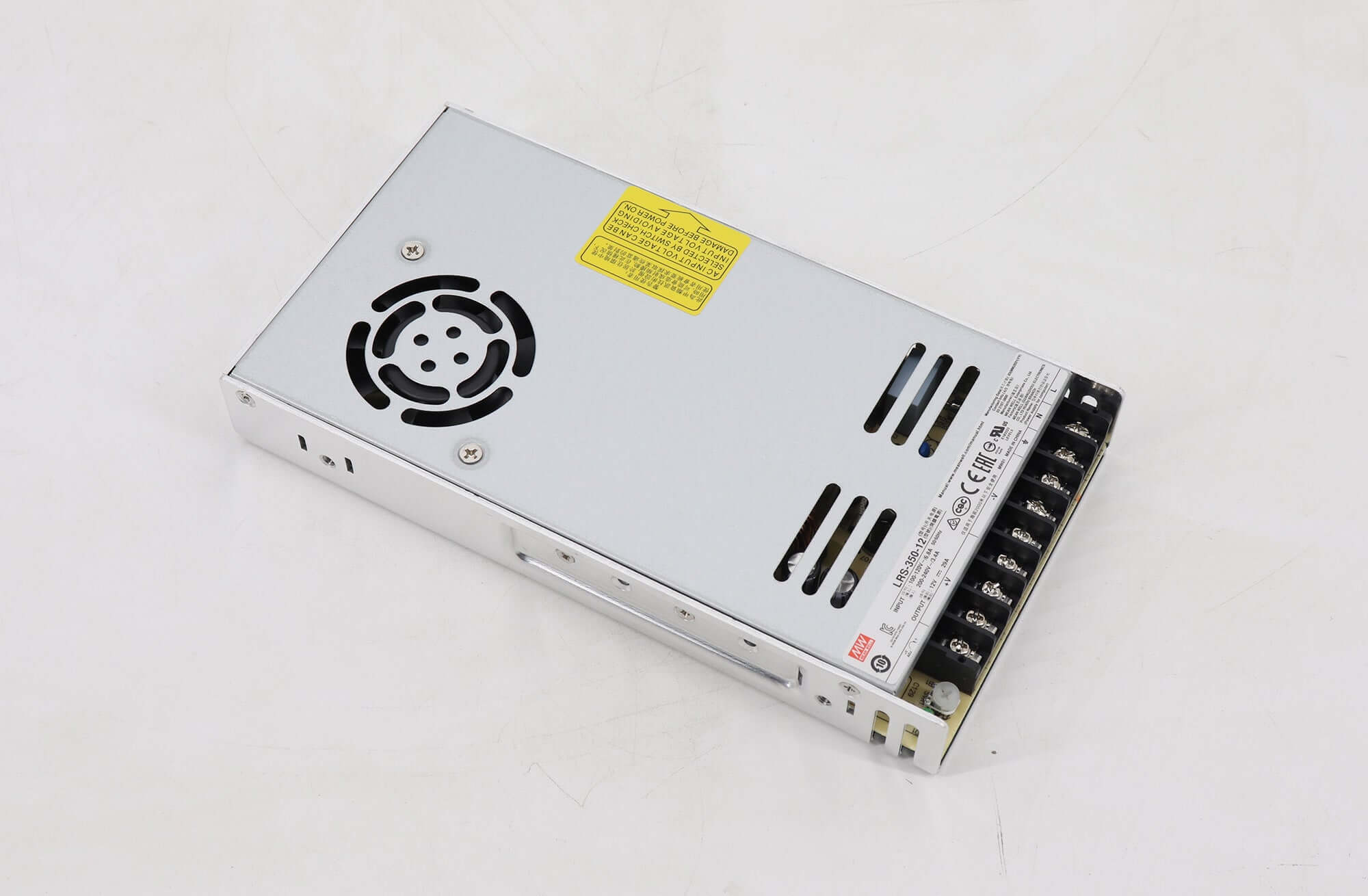

Product images and specification download
