Huidu HD-S70 Seven-Element Environmental Sensor – RS485
$ 340.00
HD-S70 combines seven environmental measurements in a louvered sensor housing. It provides RS485 output using Modbus RTU, with a 10–30 V DC power supply and a listed communication distance up to 2000 m.
1000 in stock
HD-S70 Seven-Element Sensor Transmitter

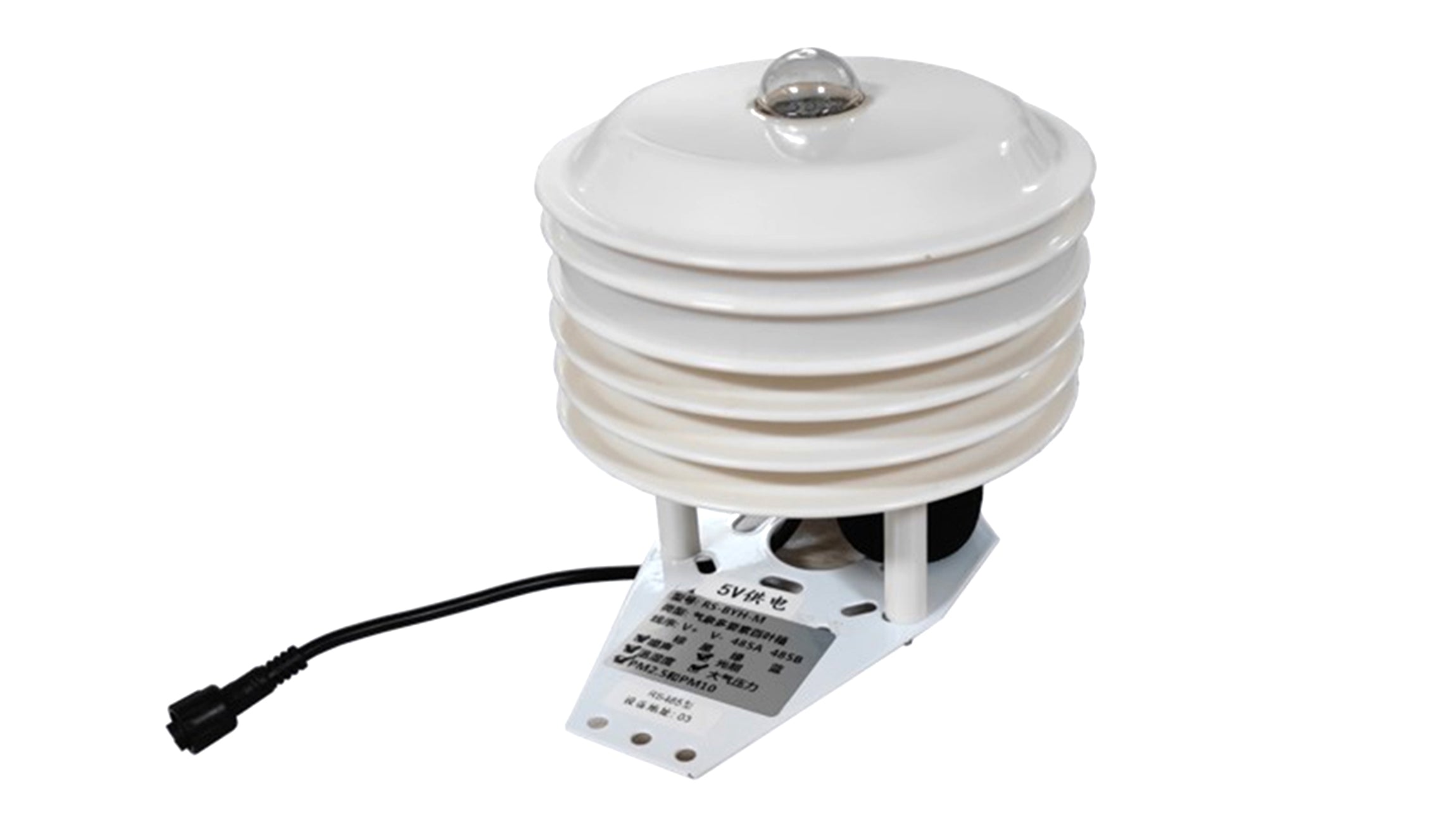

The Huidu HD-S70 collects temperature, humidity, noise, PM2.5, PM10, atmospheric pressure and light intensity in one louvered housing. It is designed for environmental monitoring systems that receive sensor data over RS485 using Modbus RTU.
| Parameter | Specification |
|---|---|
| Temperature range | −40°C to +120°C |
| Humidity range | 0–99% RH |
| Noise range | 30–120 dB |
| PM2.5 and PM10 range | 0–1000 µg/m³ |
| Particulate resolution | 1 µg/m³ |
| Particulate consistency | Listed as ±10%; dual-frequency collection and automatic calibration |
| Atmospheric pressure range | 0–120 kPa |
| Light intensity range | 0–200000 lux |
| Communication | RS485; Modbus RTU |
| Communication distance | Up to 2000 m, as listed in the product information |
| Power supply | 10–30 V DC |
| Maximum power consumption | 0.8 W for RS485 output |
| Housing | Louvered; UV-resistant material |
Using the Seven Measurements
PM2.5 and PM10 are collected simultaneously, while the light module uses a photosensitive probe. The combined measurements allow a monitoring system to collect ambient conditions through a single transmitter. Match the host device to the Modbus RTU communication settings in the specification.
The V4.2 specification confirms the temperature and humidity ranges and DC supply values shown above. Measurement ranges describe the sensing limits; refer to the installation instructions when selecting a mounting position.
Dimensions Reference
Specification Download
Download the HD-S70 specification (PDF)
Frequently Asked Questions
Which seven elements does the HD-S70 measure?
It measures temperature, humidity, noise, PM2.5, PM10, atmospheric pressure and light intensity.
What power supply does the S70 require?
The V4.2 specification lists a 10–30 V DC supply and maximum power consumption of 0.8 W for RS485 output.
Does it communicate using Modbus RTU?
Yes. It uses Modbus RTU over RS485, with a listed communication distance of up to 2000 m.
What are the temperature and humidity ranges?
The V4.2 specification lists −40°C to +120°C for temperature and 0–99% RH for humidity.
What are the particulate and light measurement ranges?
PM2.5 and PM10 are measured over 0–1000 µg/m³ with 1 µg/m³ resolution. The light intensity range is 0–200000 lux.
| Weight | 2 kg |
|---|
