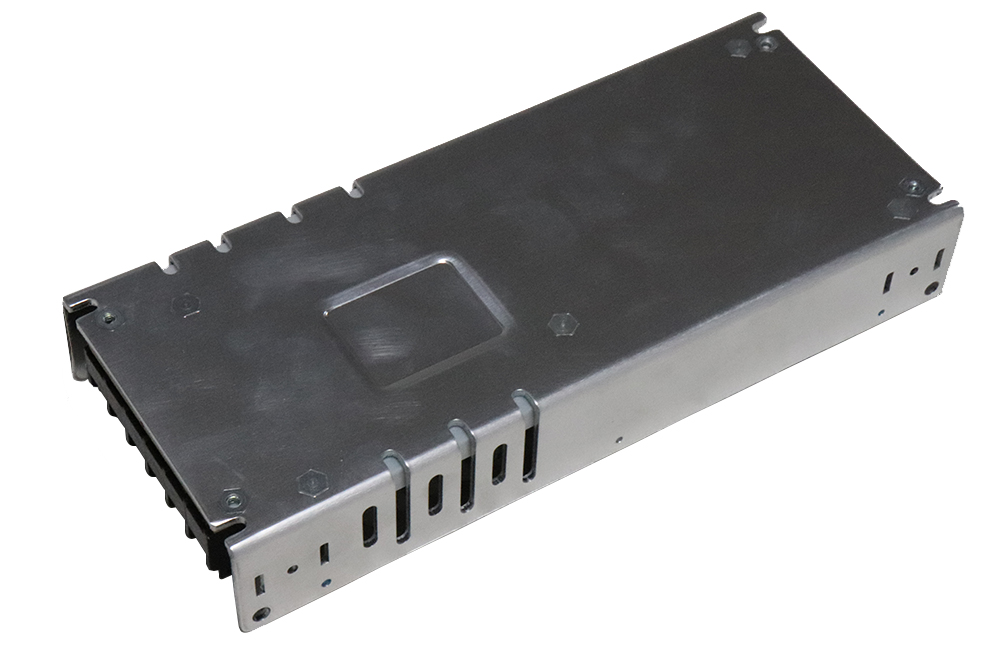

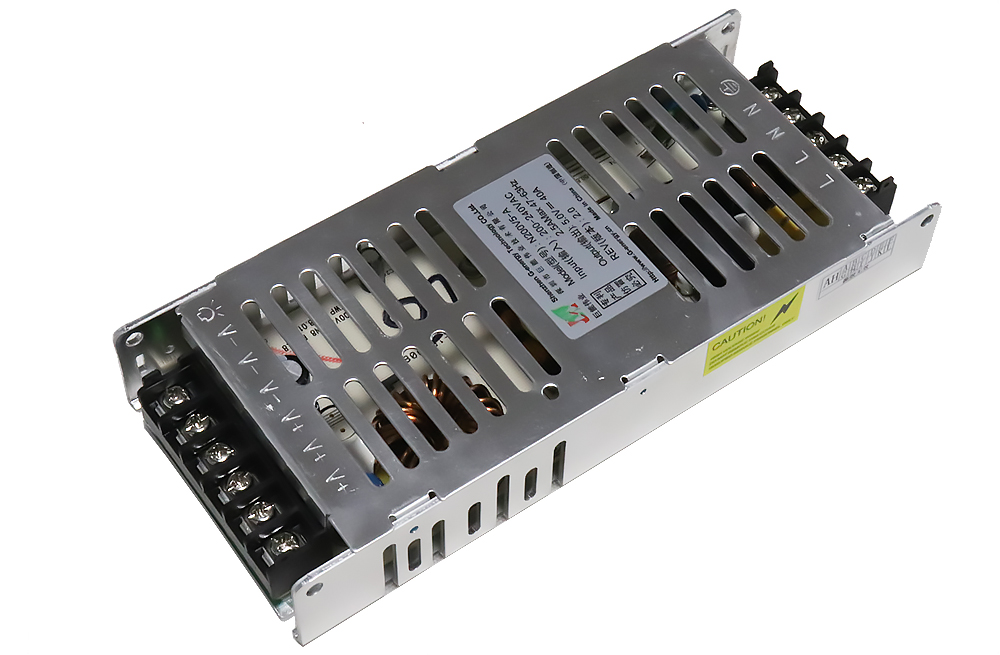

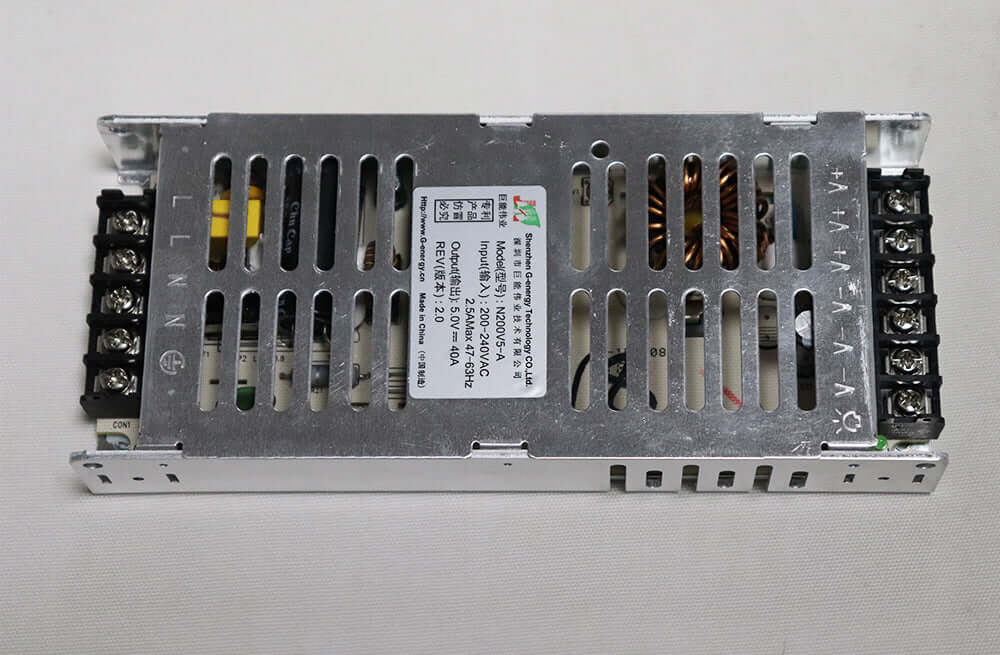

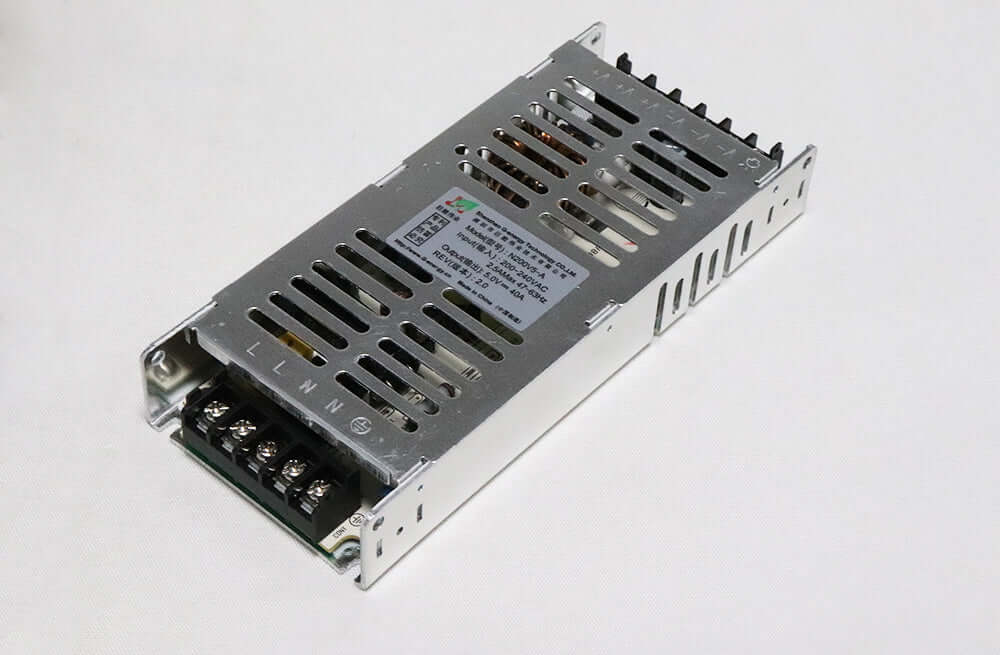

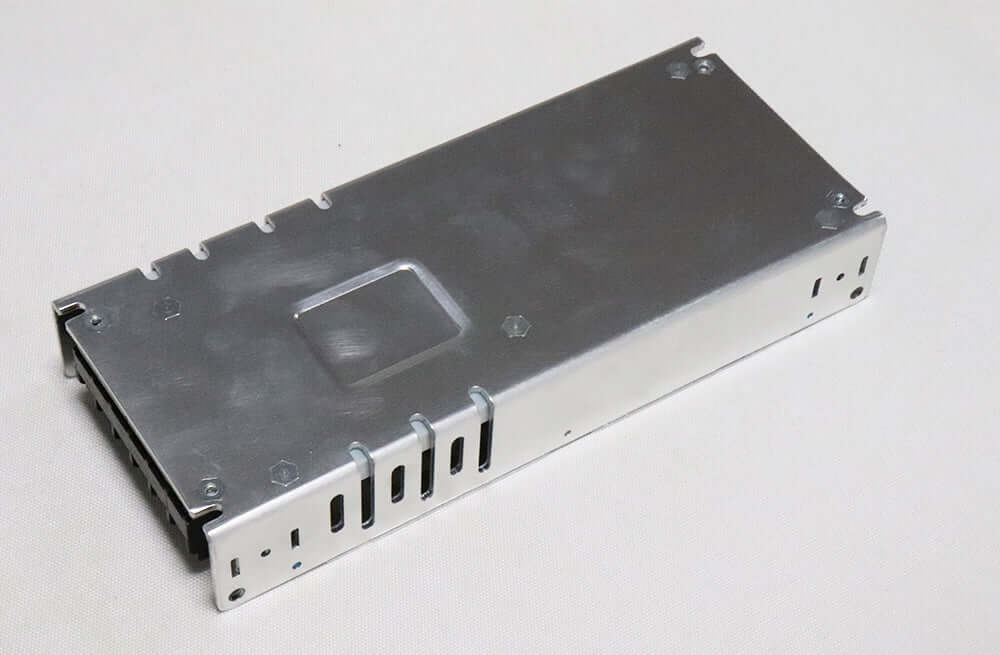

G-Energy N200V5-A 5 V 40 A Power Supply for LED Cabinets
$ 6.80
The N200V5-A is a 5 V, 40 A LED cabinet supply rated at 200 W maximum. It requires 200–240 V AC at 47–63 Hz.
9928 in stock
Before choosing the N200V5-A for a cabinet, match its 5 V output and current rating to the modules and check the AC input at the installation site.
Product details
| Parameter | Specification |
|---|---|
| Model | G-Energy N200V5-A |
| DC output | 5 V, 40 A |
| Maximum output power | 200 W |
| AC input | 200–240 V, 47–63 Hz |
| Power factor | 0.50 at 230 V AC |
| Operating temperature | −30 to +60 °C |
| Storage temperature | −40 to +100 °C |
| Protection | Undervoltage, overload, short circuit |
| Insulation voltage | Input–output: 3.0 kV AC; input–FG: 1.5 kV AC; output–FG: 0.5 kV AC |
| Leakage current | 0.30 mA at 230 V AC |
| Standards listed | GB4943, EN60950 |
Download the product specification (PDF)
Frequently asked questions
Does the N200V5-A accept a 50 Hz supply?
Yes, provided the voltage is 200–240 V AC. The input frequency range is 47–63 Hz.
How much power can the N200V5-A deliver?
Its listed maximum is 200 W, with a 5 V DC output and a 40 A rating.
Can the N200V5-A operate at its maximum storage temperature?
No. Its specified operating limit is +60 °C; the +100 °C upper limit is for storage.
| Weight | 0.6 kg |
|---|
